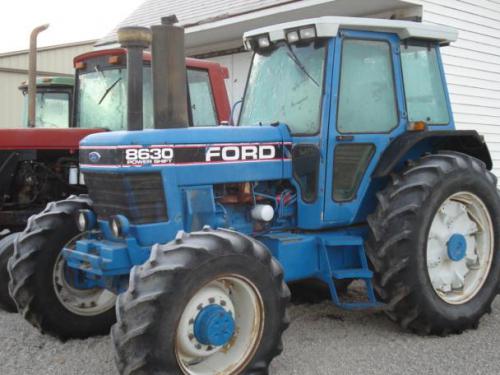

Ford-New Holland 8630 Tractors
 |
|
Power: 134 hp[P]
Date of manufacture : 1990 - 1993 |
| Production |
| Manufacturer: | Ford-New Holland
|
| Type: | Row-Crop tractor
|
| Factory: | Antwerp, Belgium
|
| Original price: | $52,500 (1993)
|
| Ford-New Holland 8630 Power |
| PTO (claimed): | 121 hp
90.2 kW
|
| Drawbar (tested): | 105.76 hp
78.9 kW
|
| PTO (tested): | 121.25 hp
90.4 kW
|
| Ford-New Holland 8630 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | Power disc
|
| Cab: | optional cab with heat and A/C
|
| Transmissions: | 18-speed
|
| | 16-speed
|
| | 8-speed
|
| Capacity |
| Fuel: | 33 gal
124.9 L
|
| | 24.5 gal
92.7 L (auxiliary tank)
|
| Steering: | 2 qts
1.9 L
|
| Hydraulics |
| Type: | open center gear pump, dual pumps optional
|
| Pressure: | 2500 psi
172.4 bar
|
| Pump flow: | 20 gpm
75.7 lpm
|
| | 28.6 gpm
108.3 lpm (dual pumps)
|
| SCV flow: | 16.9 gpm
64.0 lpm
|
| | 19 gpm
71.9 lpm (dual pumps)
|
| Steering cap.: | 2 qts
1.9 L
|
| Steering press.: | 2025 psi
139.6 bar
|
| Tractor hitch |
| Rear Type: | 3/2
|
| Control: | position and draft control
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 105 inches
266 cm
|
| Weight: | 11435 to 13960 pounds
|
| Front tire: | 11.00-16
|
| Rear tire: | 18.4/15-38
|
| 8630 Serial Numbers |
| Location: | Center of the rear axle in the rear
|
| 1990: | A925439
|
| 1991: | A928924
|
| 1992: | A930626
|
| 1993: | A931957
|
how to read serial numbers...
|
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 90
|
| Battery volts: | 12
|
|
