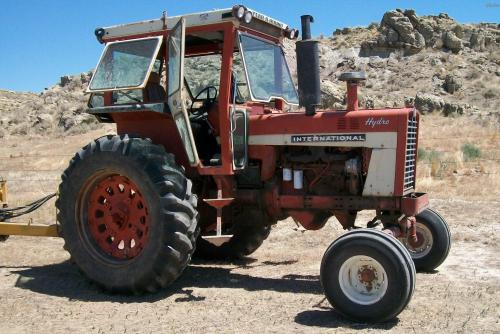

International Harvester 1026 Tractors
|
|
Power: 124 hp[P]
Date of manufacture : 1970 - 1971 |
Production |
Manufacturer: | International Harvester
|
Type: | Standard-tread tractor
|
Factory: | Rock Island, Illinois, USA
|
Total built: | 59 (IH wheatland/industrial)
|
| 2,414 (Farmall)
|
Original price: | $11,800 (1971)
|
Variants |
IH 1026: | wheatland
|
Farmall 1026: | row-crop
|
International Harvester 1026 Power |
Drawbar (tested): | 80.24 hp 59.8 kW
|
PTO (tested): | 112.45 hp 83.9 kW
|
International Harvester 1026 Engine |
Mechanical |
Chassis: | 4x2 2WD
|
| 4x4 MFWD 4WD
|
Steering: | power
|
Brakes: | differential hydraulic dry disc
|
Cab: | Open operator station.
|
Transmission: | hydrostatic
|
Tractor hitch |
Rear Type: | II
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Rear RPM: | 540/1000
|
Dimensions & Tires |
Weight: | 11,100 lbs 5034 kg
|
Front tire: | 11L-15
|
Rear tire: | 18.4-38
|
Full dimensions and tires ... |
1026 Serial Numbers |
Location: | Hydrostatic housing, left side
|
1970: | 7501 (IH)
|
1971: | 7550 (IH)
|
1970: | 7501 (Farmall)
|
1971: | 9707 (Farmall)
|
how to read serial numbers...
| |
