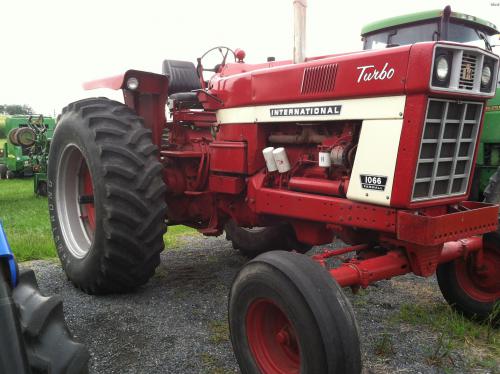

International Harvester 1066 Tractors
 |
|
Power: 140 hp[P]
Date of manufacture : 1971 - 1976 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Row-Crop tractor
|
| Factory: | Rock Island, Illinois, USA
|
| Total built: | 54,947
|
| Original price: | $21,100 (1976 )
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | hydraulic dry disc
|
| Cab: | Open operator station. Two-post fixed ROPS available. Cab available with optional air-conditioning.
|
| Transmissions: | 8-speed gear
|
| | 16-speed partial power shift
|
| | hydrostatic
|
| Photos |
| | International Harvester 1066 photos... |
| Hydraulics |
| Type: | open center
|
| Pump flow: | 12 gpm
45.4 lpm
|
| Total flow: | 21 gpm
79.5 lpm
|
| Steering flow: | 9 gpm
34.1 lpm
|
| Tractor hitch |
| Rear Type: | III/II
|
| Rear lift (at 24"/610mm): | 5600 lbs
2540 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 105 inches
266 cm
|
| Weight: | 12148 to 13345 pounds
|
| Front tire: | 11L-15
|
| Rear tire: | 18.4-38
|
| Full dimensions and tires ... |
| 1066 Serial Numbers |
| Location: | Serial number plate on the left side of the tractor's clutch housing.
|
| 1971: | 7101
|
| 1972: | 12677
|
| 1973: | 24205
|
| 1974: | 34949
|
| 1975: | 46855
|
| 1976: | 56672
|
how to read serial numbers...
| |
