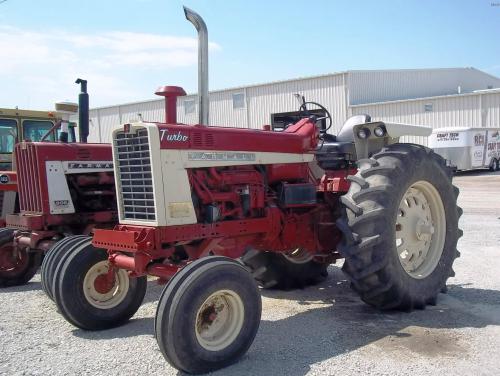

International Harvester 1206 Tractors
 |
|
Power: 122 hp[P]
Date of manufacture : 1965 - 1967 |
| Production |
| Manufacturer: | International Harvester
|
| Total built: | 1,289
|
| Original price: | $9,450 (1967)
|
| Variants |
| IH 1206: | standard front
|
| Farmall 1206: | row-crop
|
| Wheatland: | larger platform, heavy drawbar
|
| International Harvester 1206 Power |
| Drawbar (claimed): | 99 hp
73.8 kW
|
| PTO (claimed): | 110 hp
82.0 kW
|
| Drawbar (tested): | 95.00 hp
70.8 kW
|
| PTO (tested): | 112.64 hp
84.0 kW
|
| International Harvester 1206 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 FWA 4WD (optional)
|
| Steering: | hydrostatic power
|
| Brakes: | differential hydraulic dry disc
|
| Cab: | Open operator station. Optional one-door cab. Optional heat and air-conditioning.
|
| Transmissions: | 8-speed unsynchronized
|
| | 16-speed partial power shift
|
| Photos |
| | International Harvester 1206 photos... |
| Hydraulics |
| Valves: | 0 to 2
|
| Pump flow: | 12 gpm
45.4 lpm
|
| Tractor hitch |
| Rear Type: | III
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000
|
| Dimensions & Tires |
| Weight: | 10,115 lbs
4588 kg
|
| Front tire: | 7.50-16
|
| Rear tire: | 18.4-38
|
| Full dimensions and tires ... |
| 1206 Serial Numbers |
| Location: | On clutch housing, left side
|
photo of 1206 serial number
| | 1965: | 7501
|
| 1966: | 7772
|
| 1967: | 8492
|
how to read serial numbers...
| |
