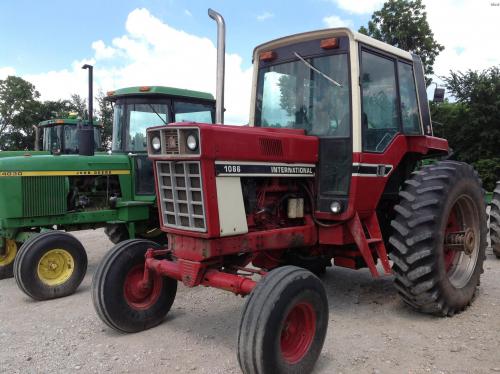

International Harvester 1086 Tractors
 |
|
Power: 146 hp[P]
Date of manufacture : 1976 - 1981 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Row-Crop tractor
|
| Factory: | Rock Island, Illinois, USA
|
| Total built: | 47,420
|
| Original price: | $35,700 (1981)
|
| Variants |
| 1086 Hi-Clear: | high clearance
|
| International Harvester 1086 Power |
| Drawbar (tested): | 113.04 hp
84.3 kW
|
| PTO (tested): | 131.41 hp
98.0 kW
|
| International Harvester 1086 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power assist
|
| Brakes: | hydraulic disc
|
| Cab: | Cab standard
|
| Transmission: | 16-speed
|
| Photos |
| | International Harvester 1086 photos... |
| Capacity |
| Fuel: | 63 gal
238.5 L (main)
|
| | 22 gal
83.3 L (auxilary)
|
| Hydraulic system: | 22.5 gal
85.2 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 22.5 gal
85.2 L
|
| Valves: | 2
|
| Pump flow: | 12 gpm
45.4 lpm
|
| Tractor hitch |
| Rear Type: | 3
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 105 inches
266 cm (wide-tread front)
|
| | 101 inches
256 cm (tricycle front)
|
| | 99 inches
251 cm (4WD)
|
| | 106 inches
269 cm (Hi-Clear)
|
| Weight: | 12300 to 13030 pounds
|
| Front tire: | 10.00-16
|
| Rear tire: | 18.4-38
|
| Full dimensions and tires ... |
| 1086 Serial Numbers |
| Location: | Frame, right side ahead of the rear axle.
|
photo of 1086 serial number
| | 1976: | 8601
|
| 1977: | 14725
|
| 1978: | 25672
|
| 1979: | 34731
|
| 1980: | 42186
|
| 1981: | 51671
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 42
|
| | 61 (with cab)
|
| Batteries: | 2
|
| Battery CCA: | 470
|
| Battery volts: | 12
|
|
