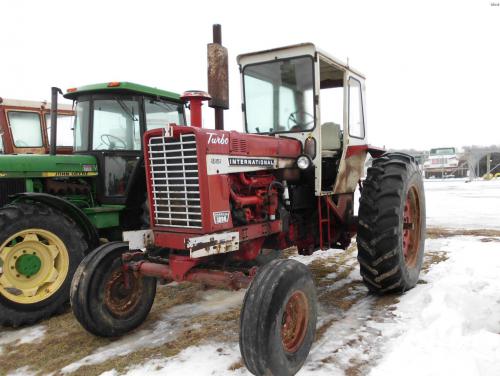

International Harvester 1256 Tractors
 |
|
Power: 125 hp[P]
Date of manufacture : 1967 - 1969 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Standard-tread tractor
|
| Factory: | Rock Island, Illinois, USA
|
| Original price: | $10,700 (1969 )
|
| Variants |
| Farmall 1256: | row-crop
|
| IH 1256: | standard
|
| International Harvester 1256 Power |
| PTO (claimed): | 113 hp
84.3 kW
|
| Drawbar (tested): | 102.03 hp
76.1 kW
|
| PTO (tested): | 116.12 hp
86.6 kW
|
| International Harvester 1256 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | independent hydraulic dry disc
|
| Cab: | Open operator station. Two-post ROPS optional. Cab optional with heat and air-conditioning.
|
| Transmissions: | 8-speed gear
|
| | 16-speed partial power shift
|
| Hydraulics |
| Type: | open center
|
| Valves: | 1
|
| Pump flow: | 8 gpm
30.3 lpm
|
| Tractor hitch |
| Rear Type: | III/II
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000
|
| Engine RPM: | 1000@2100
|
| Dimensions & Tires |
| Wheelbase: | 105 inches
266 cm (Farmall)
|
| | 92 inches
233 cm (International)
|
| Weight: | 9940 to 11030 pounds
|
| Front tire: | 10.00-16
|
| Rear tire: | 18.4-38 (Farmall)
|
| Full dimensions and tires ... |
| 1256 Serial Numbers |
| Location: | Serial number place on the left side of the 1256, on the clutch housing.
|
| 1967: | 7501 (Farmall)
|
| 1968: | 8849 (Farmall)
|
| 1969: | 13140 (Farmall)
|
| 1967: | 7501 (IH)
|
| 1968: | 7703 (IH)
|
| 1969: | 8444 (IH)
|
how to read serial numbers...
|
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 55
|
| Batteries: | 2
|
| Battery volts: | 6
|
| Battery AH: | 204
|
|
