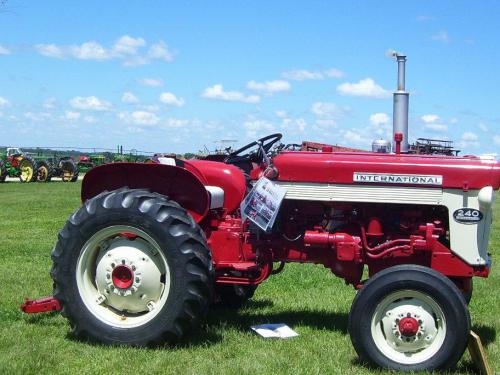

International Harvester 240 Tractors
 |
|
Power: 40 hp
Date of manufacture : 1958 - 1962 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Utility tractor
|
| Original price: | $2,700 (1962)
|
| Variants |
| Farmall 240: | row-crop tractor
|
| International Harvester 240 Power |
| Engine (gross): | 40 hp
29.8 kW
|
| Drawbar (claimed): | 28.91 hp
21.6 kW
|
| Belt (claimed): | 32.24 hp
24.0 kW
|
| Plows: | 2
|
| Drawbar (tested): | 28.07 hp
20.9 kW
|
| Belt (tested): | 30.82 hp
23.0 kW
|
| International Harvester 240 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | manual
|
| | hydrostatic power optional
|
| Brakes: | independent mechanical disc
|
| Cab: | Open operator station.
|
| Transmission: | 4-speed
|
| Photos |
| | International Harvester 240 photos... |
| Hydraulics |
| Valves: | 2
|
| Total flow: | 9.3 gpm
35.2 lpm
|
| Steering flow: | 2.5 gpm
9.5 lpm
|
| Tractor hitch |
| Type: | IH Fast Hitch
|
| Power Take-off (PTO) |
| Rear PTO: | transmission
|
| Rear RPM: | 540
|
| Dimensions & Tires |
| Wheelbase: | 75 inches
190 cm
|
| Weight: | 3140 to 3637 pounds
|
| Front tire: | 5.00-15
|
| Rear tire: | 11.2-36
|
| 240 Serial Numbers |
| Location: | Clutch housing, left side
|
photo of 240 serial number
| | 1958: | 501 (IH)
|
| 1959: | 4835 (IH)
|
| 1960: | 8628 (IH)
|
| 1961: | 10079 (IH)
|
| 1962: | 10727 (IH)
|
| Final: | 10789 (IH)
|
| 1958: | 501 (Farmall)
|
| 1959: | 1777 (Farmall)
|
| 1960: | 3415 (Farmall)
|
| 1961: | 3989 (Farmall)
|
| Final: | 4124 (Farmall)
|
how to read serial numbers...
| |
