International Harvester 274 Tractors

International Harvester 274
Power: 30 hp
Date of manufacture :
1979 - 1983
Production
Manufacturer:International Harvester
Type:High-Clearance tractor
Original price:$10,300 (1983)
Mechanical
Chassis:4x2 2WD
Brakes:hydraulic disc
Cab:Two-post ROPS. Optional canopy.
Transmission:8-speed

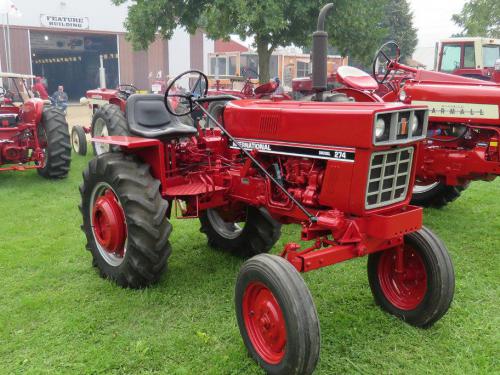

Photos
International Harvester 274 photos...
Capacity
Fuel:8.7 gal
32.9 L
Hydraulic system:3.4 gal
12.9 L
Hydraulics
Capacity:3.4 gal
12.9 L
Pressure:1857 psi
128.0 bar
Pump flow:5.7 gpm
21.6 lpm
Tractor hitch
Rear Type:I
Power Take-off (PTO)
Rear RPM:540
Engine RPM:540@2160
Dimensions & Tires
Wheelbase:72.8 inches
184 cm
Weight:2,720 lbs
1233 kg
Front tire:5.50-16
Rear tire:12.4-24
Full dimensions and tires ...
274 Serial Numbers
Location:Serial number plate on the right side of the International 274, ahead of the brake pedals.
photo of 274 serial number

1979:502
1980:670
1981:8306
1982:8948
1983:9556

how to read serial numbers...

Electrical
Ground:negative
Charging system:alternator
Charging amps:20
Battery volts:12
