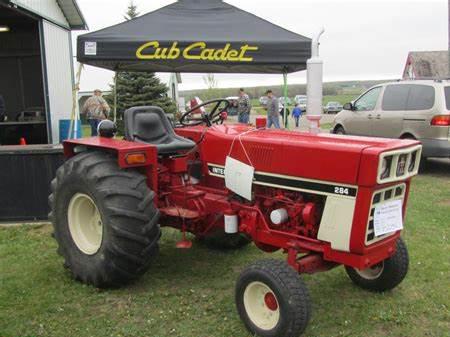

International Harvester 284 Tractors
 |
|
Power: 28 hp
Date of manufacture : 1976 - 1984 |
| Production |
| Distributor: | International Harvester
|
| Manufacturer: | Komatsu
|
| Type: | Compact Utility tractor
|
| Factory: | Japan
|
| Original price: | $5,000 (1984 )
|
| International Harvester 284 Power |
| Engine: | 30 hp
22.4 kW
|
| Drawbar (claimed): | 21 hp
15.7 kW
|
| Diesel PTO (claimed): | 27.4 hp
20.4 kW
|
| Gasoline PTO (claimed): | 25.8 hp
19.2 kW
|
| Drawbar (tested): | 21.98 hp
16.4 kW
|
| PTO (tested): | 27.47 hp
20.5 kW
|
| International Harvester 284 Engines |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD*Optional after 1982. Available only with the diesel engine.
|
| Steering: | manual
|
| Brakes: | hydraulic wet disc
|
| Cab: | Open operator station. Optional two-post ROPS with canopy.
|
| Transmission: | 8-speed
|
| Photos |
| | International Harvester 284 photos... |
| Capacity |
| Fuel: | 8.7 gal
32.9 L
|
| Hydraulic system: | 3.4 gal
12.9 L
|
| Hydraulics |
| Capacity: | 3.4 gal
12.9 L
|
| Pressure: | 1920 psi
132.4 bar
|
| Total flow: | 6 gpm
22.7 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Control: | position control
|
| Rear lift (at ends): | 2000 lbs
907 kg
|
| Power Take-off (PTO) |
| Rear PTO: | transmission
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 68.6 inches
174 cm
|
| Weight: | 2050 to 2740 pounds
|
| Front tire: | 5.00-15
|
| 2WD Rear tire: | 11.2-24
|
| Full dimensions and tires ... |
| 284 Serial Numbers |
| Location: | In front of rear axle on the right side of the frame
|
photo of 284 serial number
| | 1976: | 8005 (gasoline)
|
| 1977: | 8125 (gasoline)
|
| 1978: | 10705 (gasoline)
|
| 1979: | 12425 (gasoline)
|
| 1980: | 13207 (gasoline)
|
| 1981: | 13419 (gasoline)
|
| 1980: | 670 (2WD diesel)
|
| 1981: | 2146 (2WD diesel)
|
| 1982: | 2999 (2WD diesel)
|
| 1983: | 3343 (2WD diesel)
|
| 1984: | 4561 (2WD diesel)
|
| 1980: | 1211 (4WD diesel)
|
| 1981: | 2267 (4WD diesel)
|
| 1983: | 3803 (4WD diesel)
|
| 1984: | 4511 (4WD diesel)
|
how to read serial numbers...
|
| Electrical |
| Charging system: | alternator
|
| Gas Charging amps: | 35
|
| Diesel Charging amps: | 20
|
| Battery volts: | 12
|
|
