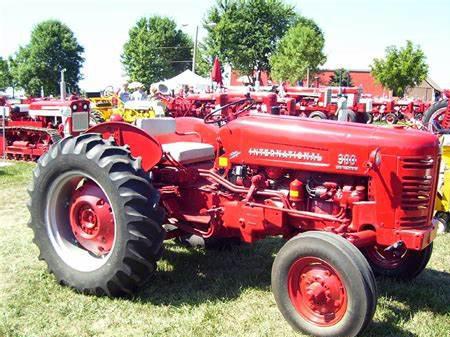

International Harvester 300 Tractors
|
|
Power: 45 hp[B]
Date of manufacture : 1955 - 1956 |
Production |
Manufacturer: | International Harvester
|
Type: | Utility tractor
|
Total built: | 59,928 (total)
|
| 30,851 (IH)
|
| 29,077 (Farmall)
|
Original price: | $2,900 (1956)
|
Mechanical |
Chassis: | 4x2 2WD
|
Brakes: | differential mechanical disc
|
Cab: | Open operator station.
|
Transmissions: | 5-speed sliding gear
|
| 10-speed partial power shift
|
Photos |
| International Harvester 300 photos... |
Tractor hitch |
Type: | IH Fast Hitch
|
Power Take-off (PTO) |
Rear PTO: | transmission
|
| independent (with TA)
|
Rear RPM: | 540
|
Dimensions & Tires |
Wheelbase: | 75 inches 190 cm
|
Weight: | 4,413 lbs 2001 kg
|
Front tire: | 5.50-16
|
Rear tire: | 10.00x28
|
Full dimensions and tires ... |
300 Serial Numbers |
Location: | Serial number plate attached to the tractor's clutch housing
|
photo of 300 serial number
| 1955: | 501
|
1956: | 20219
|
Final: | 33664
|
how to read serial numbers...
|
Electrical |
Ground: | positive
|
Battery volts: | 6
|
| 12 (LP gas)
|
|
