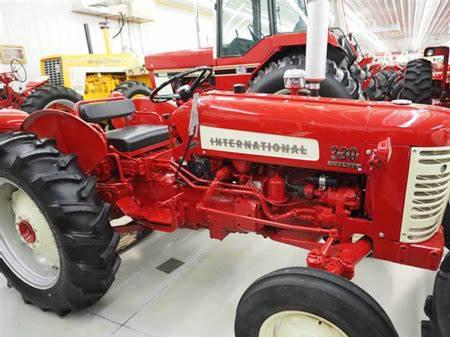

International Harvester 330 Tractors
|
|
Power: 39 hp[B]
Date of manufacture : 1957 - 1958 |
Production |
Manufacturer: | International Harvester
|
Type: | Utility tractor
|
Factory: | Rock Island, Illinois, USA
|
Total built: | 4,262
|
Original price: | $2,900 (1958 )
|
Mechanical |
Chassis: | 4x2 2WD
|
Steering: | manual
|
Steering: | power*Optional
|
Brakes: | disc
|
Cab: | Open operator station.
|
Transmissions: | 5-speed sliding gear
|
| 10-speed two-speed power shift
|
Photos |
| International Harvester 330 photos... |
Capacity |
Fuel: | 11.25 gal 42.6 L
|
Hydraulic system: | 3.4 gal 12.9 L
|
Hydraulics |
Type: | open center*Optional
|
Capacity: | 3.4 gal 12.9 L
|
Valves: | 1 to 3
|
Tractor hitch |
Type: | IH Fast Hitch
|
Power Take-off (PTO) |
Rear PTO: | transmission
|
| independent*Optional
|
Rear RPM: | 540
|
Dimensions & Tires |
Wheelbase: | 73.5 inches 186 cm
|
Weight: | 4,100 lbs 1859 kg
|
Front tire: | 5.50x16
|
Rear tire: | 11x28
|
330 Serial Numbers |
Location: | Serial number plate on the right side of the tractor, on the clutch housing.
|
photo of 330 serial number
| 1957: | 501
|
1958: | 1488
|
Final: | 4763
|
how to read serial numbers...
| |
