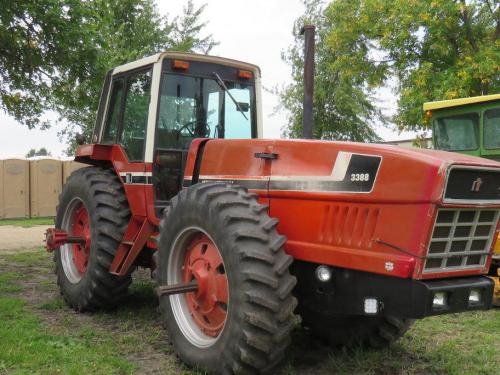

International Harvester 3388 Tractors
 |
|
Power: 145 hp[P]
Date of manufacture : 1978 - 1981 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Total built: | 2,146
|
| Original price: | $45,680 (1981 )
|
| International Harvester 3388 Power |
| Drawbar (tested): | 111.75 hp
83.3 kW
|
| PTO (tested): | 130.61 hp
97.4 kW
|
| International Harvester 3388 Engine |
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Cab standard
|
| Transmission: | 16-speed two-range power shift
|
| Photos |
| | International Harvester 3388 photos... |
| Hydraulics |
| Type: | closed center
|
| Valves: | 2
|
| Pump flow: | 12 gpm
45.4 lpm
|
| Tractor hitch |
| Rear Type: | III
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Engine RPM: | 540@2100
1000@2100
|
| Dimensions & Tires |
| Wheelbase: | 110 inches
279 cm
|
| Weight: | 16340 to 17420 pounds
|
| Front tire: | 16.9-38
|
| Rear tire: | 16.9-38
|
| Full dimensions and tires ... |
| 3388 Serial Numbers |
| Location: | On the rear tractor frame, right side, near axle.
|
| 1978: | 8801
|
| 1979: | 8816
|
| 1980: | 10037
|
| 1981: | 10714
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 72
|
| | 100*Optional
|
| Batteries: | 2
|
| Battery volts: | 12
|
|
