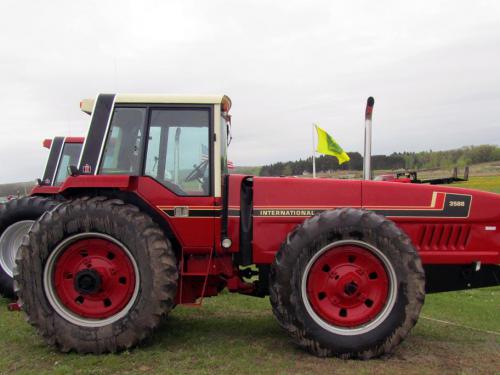

International Harvester 3588 Tractors
 |
|
Power: 167 hp[P]
Date of manufacture : 1978 - 1981 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Total built: | 5,643
|
| Original price: | $51,300 (1981 )
|
| International Harvester 3588 Power |
| Drawbar (claimed): | 130 hp
96.9 kW
|
| PTO (claimed): | 150.41 hp
112.2 kW
|
| Drawbar (tested): | 126.15 hp
94.1 kW
|
| PTO (tested): | 150.41 hp
112.2 kW
|
| International Harvester 3588 Engine |
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Brakes: | hydraulic wet disc
|
| Cab: | Cab standard
|
| Transmission: | 16-speed two-range power shift
|
| Photos |
| | International Harvester 3588 photos... |
| Hydraulics |
| Type: | closed center
|
| Valves: | 2
|
| Pump flow: | 12 gpm
45.4 lpm
|
| Tractor hitch |
| Rear Type: | III
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000
|
| Engine RPM: | 1000@2100
|
| Dimensions & Tires |
| Wheelbase: | 110 inches
279 cm
|
| Weight: | 16520 to 17620 pounds
|
| Front tire: | 18.4-38
|
| Rear tire: | 18.4-38
|
| Full dimensions and tires ... |
| 3588 Serial Numbers |
| Location: | Ahead of rear axle on right side.
|
| 1978: | 8801
|
| 1979: | 8844
|
| 1980: | 11797
|
| 1981: | 13561
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 72
|
| | 100*Optional
|
| Batteries: | 2
|
| Battery volts: | 12
|
|
