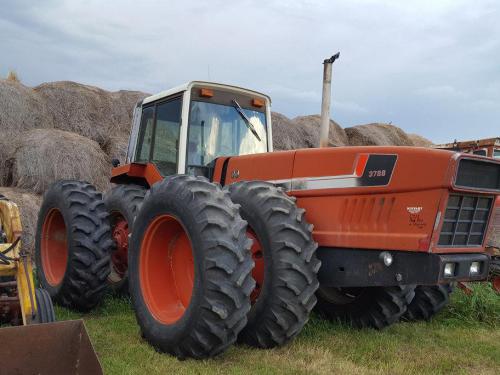

International Harvester 3788 Tractors
 |
|
Power: 189 hp[P]
Date of manufacture : 1980 - 1981 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Total built: | 2,496
|
| Original price: | $57,000 (1981 )
|
| International Harvester 3788 Power |
| Drawbar (claimed): | 146 hp
108.9 kW
|
| PTO (claimed): | 170.57 hp
127.2 kW
|
| Drawbar (tested): | 142.05 hp
105.9 kW
|
| PTO (tested): | 170.57 hp
127.2 kW
|
| International Harvester 3788 Engine |
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Cab standard
|
| Transmission: | 12-speed two-range power shift
|
| Photos |
| | International Harvester 3788 photos... |
| Hydraulics |
| Type: | closed center
|
| Valves: | 2
|
| Pump flow: | 12 gpm
45.4 lpm
|
| Tractor hitch |
| Rear Type: | III
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000
|
| Engine RPM: | 1000@2100
|
| Dimensions & Tires |
| Wheelbase: | 110 inches
279 cm
|
| Weight: | 16520 to 18620 pounds
|
| Front tire: | 18.4-38
|
| Rear tire: | 18.4-38
|
| Full dimensions and tires ... |
| 3788 Serial Numbers |
| Location: | Right side of tractor frame, by rear axle.
|
| 1980: | 8801
|
| 1981: | 10866
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 72
|
| | 100*Optional
|
| Batteries: | 2
|
| Battery volts: | 12
|
|
