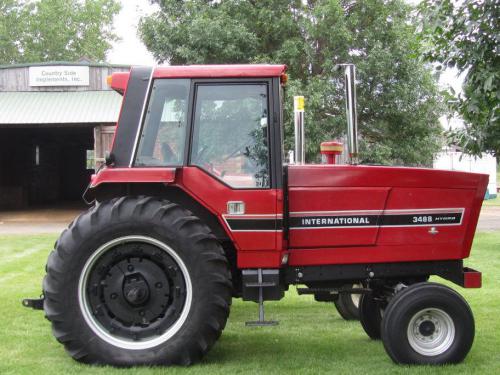

International Harvester 3488 Tractors
 |
|
Power: 124 hp[P]
Date of manufacture : 1981 - 1984 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Row-Crop tractor
|
| Factory: | Rock Island, Illinois, USA
|
| Total built: | 465
|
| Original price: | $50,000 (1984 )
|
| International Harvester 3488 Power |
| Drawbar (claimed): | 83 hp
61.9 kW
|
| PTO (claimed): | 112 hp
83.5 kW
|
| Drawbar (tested): | 80.50 hp
60.0 kW
|
| PTO (tested): | 112.56 hp
83.9 kW
|
| International Harvester 3488 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Cab standard with heat and A/C. Optional burgundy or western finish interiors.
|
| Transmission: | hydrostatic
|
| Photos |
| | International Harvester 3488 photos... |
| Capacity |
| Fuel: | 50 gal
189.3 L
|
| Hydraulic system: | 28.5 gal
107.9 L
|
| Hydraulics |
| Type: | closed center
|
| Capacity: | 28.5 gal
107.9 L
|
| Valves: | 2 or 3
|
| Pump flow: | 18 gpm
68.1 lpm
|
| Total flow: | 27 gpm
102.2 lpm
|
| Steering flow: | 12 gpm
45.4 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | draft sensing
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Engine RPM: | 540@2100
1000@2100
|
| Dimensions & Tires |
| Wheelbase: | 105 inches
266 cm
|
| Weight: | 11600 to 12880 pounds
|
| Front tire: | 10.00-16
|
| Rear tire: | 18.4-34
|
| Full dimensions and tires ... |
| 3488 Serial Numbers |
| Location: | Serial number plate on the right side of the tractor frame, ahead of the rear axle.
|
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
|
