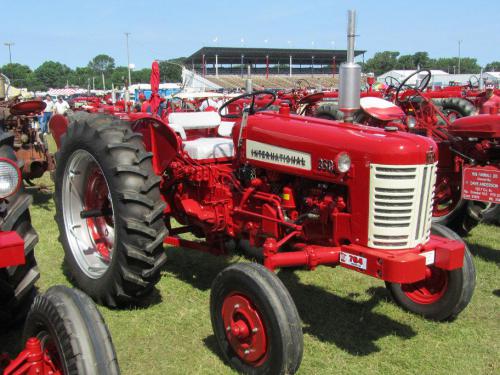

International Harvester 350 Tractors
 |
|
Power: 49 hp[B]
Date of manufacture : 1956 - 1958 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Utility tractor
|
| Factory: | Rock Island, Illinois, USA
|
| Original price: | $3,100 (1958 )
|
| Variants |
| Farmall 350: | row-crop tractor
|
| IH 350 Utility: | utility model
|
| IH 350 High-Utility: | high-clearance utility
|
| IH 350 Wheatland: | standard-tread full size tractor
|
| International Harvester 350 Power |
| Gas Drawbar (claimed): | 40.6 hp
30.3 kW
|
| Diesel Drawbar (claimed): | 41 hp
30.6 kW
|
| LP-gas Drawbar (claimed): | 42.9 hp
32.0 kW
|
| Gas Belt (claimed): | 44.9 hp
33.5 kW
|
| Diesel Belt (claimed): | 44.1 hp
32.9 kW
|
| LP-gas Belt (claimed): | 46.7 hp
34.8 kW
|
| Drawbar (tested): | 32.74 hp
24.4 kW
|
| Belt (tested): | 45.24 hp
33.7 kW
|
| International Harvester 350 Engines |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | manual
|
| Steering: | power*Optional
|
| Brakes: | disc
|
| Cab: | Open operator station.
|
| Transmissions: | 5-speed sliding gear
|
| | 10-speed two-speed power shift
|
| Photos |
| | International Harvester 350 photos... |
| Capacity |
| Fuel: | 17 gal
64.3 L gas
|
| | 18 gal
68.1 L diesel
|
| | 18.4 gal
69.6 L LP gas
|
| Hydraulic system: | 3.4 gal
12.9 L
|
| Hydraulics |
| Type: | open center*Optional
|
| Capacity: | 3.4 gal
12.9 L
|
| Valves: | 1 to 3
|
| Tractor hitch |
| Type: | IH Fast Hitch
|
| Power Take-off (PTO) |
| Rear PTO: | transmission
|
| | independent*Optional
|
| Rear RPM: | 540
|
| Dimensions & Tires |
| Wheelbase: | 75 inches
190 cm (utility)
|
| | 74 inches
187 cm (wheatland)
|
| Weight: | 4595 to 4655 pounds
|
| Front tire: | 5.50x16
|
| Rear tire: | 10.00x28
|
| 350 Serial Numbers |
| Location: | Clutch housing, right side
|
| 1956: | 501
|
| 1957: | 1963
|
| 1958: | 15049
|
how to read serial numbers...
| |
