International Harvester 354 Tractors
 |
|
Power: 35 hp
Date of manufacture : 1971 - 1975 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Utility tractor
|
| Factory: | Doncaster, England
|
| Original price: | $4,200 (1975 )
|
| International Harvester 354 Power |
| Engine: | 35 hp
26.1 kW
|
| Drawbar (claimed): | 28 hp
20.9 kW
|
| PTO (claimed): | 32 hp
23.9 kW
|
| Drawbar (tested): | 30.23 hp
22.5 kW
|
| PTO (tested): | 32.88 hp
24.5 kW
|
| International Harvester 354 Engines |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | power
|
| Brakes: | differential mechanical dry disc
|
| Cab: | Open operator station.
|
| Transmission: | 8-speed sliding gear
|
| Photos |

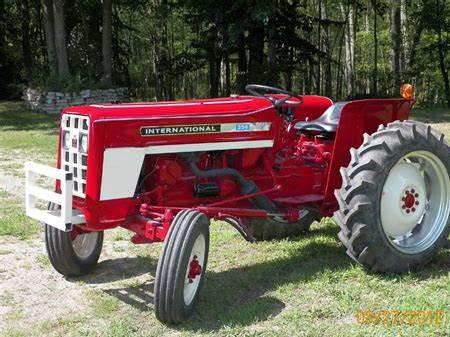

| | International Harvester 354 photos... |
| Capacity |
| Fuel: | 12.2 gal
46.2 L
|
| Hydraulic system: | 3 gal
11.4 L
|
| Hydraulics |
| Capacity: | 3 gal
11.4 L
|
| Valves: | 0 to 2
|
| Total flow: | 6 gpm
22.7 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Rear lift: | 2602 lbs
1180 kg
|
| Power Take-off (PTO) |
| Rear PTO: | continuous
|
| Rear RPM: | 540
|
| Dimensions & Tires |
| Wheelbase: | 76.5 inches
194 cm
|
| Weight: | 4040 lbs
1832 kg
|
| Front tire: | 5.50-16
|
| Rear tire: | 12.4-28
|
| Full dimensions and tires ... |
| 354 Serial Numbers |
| 1972: | 990 (gasoline)
|
| 1973: | 3013 (gasoline)
|
| 1974: | 3844 (gasoline)
|
| 1972: | 1468 (diesel)
|
| 1973: | 2470 (diesel)
|
| 1974: | 3019 (diesel)
|
how to read serial numbers...
| |
