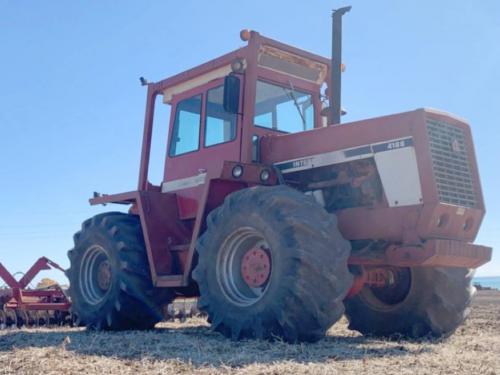

International Harvester 4186 Tractors
 |
|
Power: 166 hp[P]
Date of manufacture : 1976 - 1978 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Rock Island, Illinois, USA
|
| Original price: | $32,500 (1978 )
|
| International Harvester 4186 Power |
| Drawbar (claimed): | 130 hp
96.9 kW
|
| PTO (claimed): | 150 hp
111.9 kW
|
| Drawbar (tested): | 127.55 hp
95.1 kW
|
| PTO (tested): | 150.63 hp
112.3 kW
|
| International Harvester 4186 Engine |
| Mechanical |
| Chassis: | 4x4 4WD
|
| Steering: | hydraulic power
|
| Brakes: | hydraulic expanding shoe
|
| Cab: | Cab standard
|
| Transmission: | 8-speed gear
|
| Photos |
| | International Harvester 4186 photos... |
| Hydraulics |
| Type: | open center
|
| Valves: | 2
|
| Pump flow: | 18 gpm
68.1 lpm
|
| Tractor hitch |
| Rear Type: | III/II
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000
|
| Engine RPM: | 1000@1159
|
| Dimensions & Tires |
| Wheelbase: | 102 inches
259 cm
|
| Weight: | 15900 lbs
7212 kg
|
| Front tire: | 23.1-26
|
| Rear tire: | 23.1-26
|
| Full dimensions and tires ... | |
