International Harvester 4156 Tractors
 |
|
Power: 155 hp[P]
Date of manufacture : 1969 - 1970 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Total built: | 218
|
| Original price: | $21,500 (1970)
|
| International Harvester 4156 Power |
| Drawbar (claimed): | 125 hp
93.2 kW
|
| PTO (claimed): | 140 hp
104.4 kW
|
| International Harvester 4156 Engine |
| Mechanical |
| Chassis: | 4x4 4WD
|
| Steering: | Hydrostatic power, 2- or 4-wheel
|
| Brakes: | Hydraulic drum
|
| Cab: | Cab optional with heat and A/C
|
| Transmission: | 8-speed
|

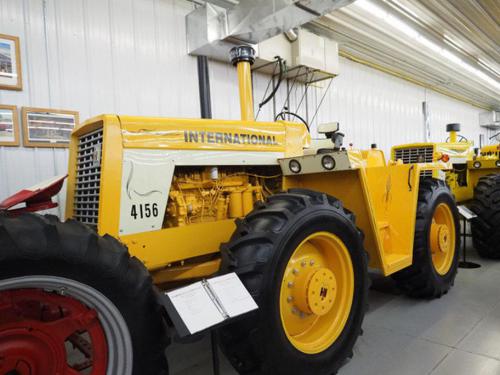

| Photos |
| | International Harvester 4156 photos... |
| Hydraulics |
| Valves: | 0 to 3
|
| Pump flow: | 17.5 gpm
66.2 lpm
|
| | 25.5 gpm
96.5 lpm (optional)
|
| Total flow: | 27.1 gpm
102.6 lpm
|
| Steering flow: | 9.6 gpm
36.3 lpm (front)
|
| | 21.5 gpm
81.4 lpm (rear)
|
| | 29.5 gpm
111.7 lpm (optional rear)
|
| Steering press.: | 2000 psi
137.9 bar
|
| Tractor hitch |
| Rear Type: | 2/3
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 102 inches
259 cm
|
| Weight: | 13,800 lbs
6259 kg
|
| Front tire: | 23.1-26
|
| Rear tire: | 23.1-26
|
| Full dimensions and tires ... |
| 4156 Serial Numbers |
| 1969: | 9219
|
| 1970: | 9365
|
| Final: | 9447
|
how to read serial numbers...
| |
