Navigation: Home > International Harvester > 4100

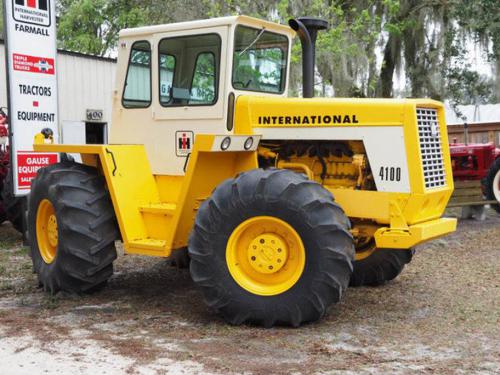

International Harvester 4100 Tractors
 |
|
Power: 144 hp[P]
Date of manufacture : 1965 - 1968 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Rock Island, Illinois, USA
|
| Total built: | 1,217
|
| Original price: | $18,200 (1968)
|
| International Harvester 4100 Power |
| Drawbar (claimed): | 116.15 hp
86.6 kW
|
| PTO (claimed): | 130 hp
96.9 kW
|
| Drawbar (tested): | 110.82 hp
82.6 kW
|
| International Harvester 4100 Engine |
| Mechanical |
| Chassis: | 4x4 4WD
|
| Steering: | hydraulic power
|
| Brakes: | integral hydraulic expanding shoe
|
| Cab: | Cab standard
|
| Transmission: | 8-speed
|
| Photos |
| | International Harvester 4100 photos... |
| Hydraulics |
| Pump flow: | 16.5 gpm
62.5 lpm
|
| Tractor hitch |
| Rear Type: | III (optional)
|
| Power Take-off (PTO) |
| Rear PTO: | optional independent
|
| Rear RPM: | 1000 (1-3/8)
|
| | 1000 (1-3/4)
|
| Dimensions & Tires |
| Wheelbase: | 100 inches
254 cm
|
| Weight: | 15,175 lbs
6883 kg
|
| Front tire: | 18.4-30
|
| Rear tire: | 18.4-30
|
| Full dimensions and tires ... |
| 4100 Serial Numbers |
| Location: | Clutch housing, right side
|
| 1966: | 8001
|
| 1967: | 8723
|
| 1968: | 8986
|
| Final: | 9218
|
how to read serial numbers...
| |
