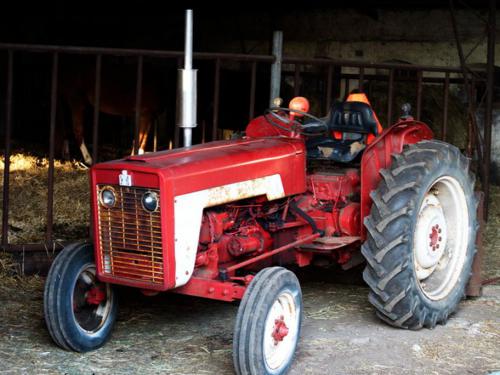

International Harvester 434 Tractors
 |
|
Power: 43 hp
Date of manufacture : 1966 - 1971 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Utility tractor
|
| Factories: | Bradford, England
|
| | Louisville, Kentucky, USA
|
| International Harvester 434 Power |
| Engine: | 43 hp
32.1 kW
|
| International Harvester 434 Engines |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | mechanical
|
| Cab: | Open operator station.
|
| Transmission: | 8-speed
|
| Photos |
| | International Harvester 434 photos... |
| Hydraulics |
| Pump flow: | 7.0 gpm
26.5 lpm
|
| Tractor hitch |
| Rear lift: | 2579 lbs
1169 kg
|
| Power Take-off (PTO) |
| Rear RPM: | 540
|
| Dimensions & Tires |
| Wheelbase: | 76.38 inches
194 cm
|
| Weight: | 4630 lbs
2100 kg
|
| Front tire: | 7.50-16
|
| Rear tire: | 12.4-32
|
| Full dimensions and tires ... |
| 434 Serial Numbers |
| Location: | Serial number plate on the right side of the 434 frame.
|
photo of 434 serial number
| | 1966: | 501 (diesel)
|
| 1967: | 8593 (diesel)
|
| 1968: | 16435 (diesel)
|
| 1969: | 22080 (diesel)
|
| 1970: | 22887 (diesel)
|
| 1971: | 31618 (diesel)
|
| Final: | 31697 (diesel)
|
| 1966: | 501 (gasoline)
|
| 1967: | 1050 (gasoline)
|
| 1968: | 1963 (gasoline)
|
| 1969: | 2441 (gasoline)
|
| 1970: | 2952 (gasoline)
|
| Final: | 3359 (gasoline)
|
how to read serial numbers...
|
| Electrical |
| Ground: | positive
|
| Charging system: | Lucas generator
|
| Charging amps: | 50
|
| Battery CCA: | 1000
|
|
