International Harvester 424 Tractors
|
|
Power: 41 hp[P]
Date of manufacture : 1964 - 1967 |
Production |
Manufacturer: | International Harvester
|
Type: | Utility tractor
|
Factories: | Doncaster, England
|
| Louisville, Kentucky, USA
|
Original price: | $3,300 (1967)
|
International Harvester 424 Power |
Drawbar (claimed): | 32.1 hp 23.9 kW
|
PTO (claimed): | 36.97 hp 27.6 kW
|
Drawbar (tested): | 31.90 hp 23.8 kW
|
PTO (tested): | 36.97 hp 27.6 kW
|
International Harvester 424 Engines |
Mechanical |
Chassis: | 4x2 2WD
|
Steering: | power assist
|
Brakes: | differential mechanical dry disc
|
Cab: | Open operator station.
|
Transmission: | 8-speed sliding gear
|
Photos |

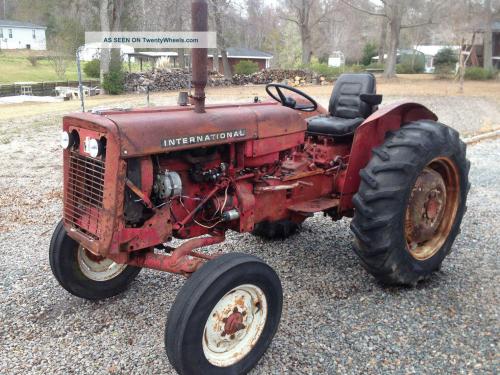

| International Harvester 424 photos... |
Tractor hitch |
Rear Type: | I
|
Power Take-off (PTO) |
Rear PTO: | live
|
Rear RPM: | 540
|
Dimensions & Tires |
Wheelbase: | 70 inches 177 cm
|
Weight: | 4,055 lbs 1839 kg
|
Front tire: | 5.50-16
|
Rear tire: | 12.4-28
|
424 Serial Numbers |
Location: | Serial number plate on the tractor clutch housing.
|
photo of 424 serial number
| 1964: | 501
|
1965: | 1402
|
1966: | 7841
|
1967: | 13627
|
how to read serial numbers...
| |
