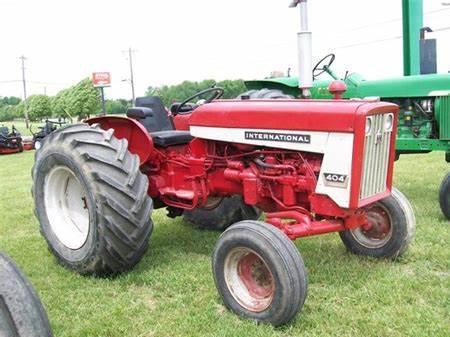

International Harvester 404 Tractors
 |
|
Power: 40 hp[P]
Date of manufacture : 1961 - 1968 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Utility tractor
|
| Factory: | Louisville, Kentucky, USA
|
| Total built: | 8256
|
| Original price: | $3,300 (1968 )
|
| Variants |
| Farmall 404: | row-crop chassis
|
| IH 404: | utility chassis
|
| 2404: | industrial
|
| International Harvester 404 Power |
| Drawbar (claimed): | 33.4 hp
24.9 kW (gas)
|
| | 29 hp
21.6 kW (LP)
|
| PTO (claimed): | 36.7 hp
27.4 kW (gas)
|
| | 33 hp
24.6 kW (LP)
|
| Plows: | 2-3
|
| International Harvester 404 Engines |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | power (optional)
|
| Brakes: | differential mechanical disc
|
| Cab: | Open operator station.
|
| Transmissions: | 4-speed
|
| | 8-speed
|
| | 4-speed manual shuttle
|
| Photos |
| | International Harvester 404 photos... |
| Capacity |
| Fuel: | 16.2 gal
61.3 L (gas)
|
| | 19 gal
71.9 L (LP-gas)
|
| Hydraulic system: | 5 gal
18.9 L
|
| Hydraulics |
| Type: | live
|
| Capacity: | 5 gal
18.9 L
|
| Valves: | 1 or 2
|
| Total flow: | 4.5 gpm
17.0 lpm
|
| | 9.3 gpm
35.2 lpm (optional)
|
| Tractor hitch |
| Rear Type: | I
|
| Power Take-off (PTO) |
| Rear PTO: | transmission
|
| Rear RPM: | 540
|
| Dimensions & Tires |
| Wheelbase: | 75.4 inches
191 cm
|
| Weight: | 3,260 lbs
1478 kg
|
| Front tire: | 5.50-16
|
| Rear tire: | 12.4-28
|
| 404 Serial Numbers |
| 1961: | 501
|
| 1962: | 1045
|
| 1963: | 4205
|
| 1964: | 6452
|
| 1965: | 8292
|
| 1966: | 9548
|
| 1967: | 10534
|
| 1968: | 11032
|
how to read serial numbers...
|
| Belt Pulley |
| Diameter: | 11 inches
27 cm
|
| RPM: | 948
|
| Speed: | 2,730 ft/min
832.10 meters/min
|
|
