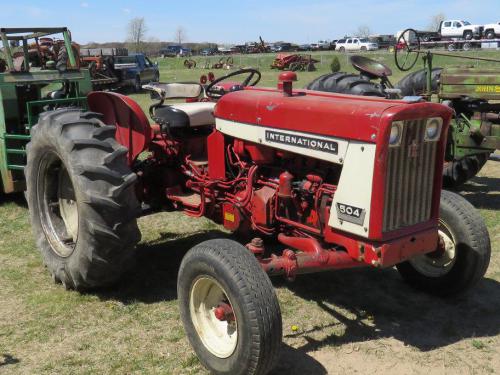

International Harvester 504 Tractors
 |
|
Power: 51 hp[P]
Date of manufacture : 1961 - 1968 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Utility tractor
|
| Factory: | Rock Island, Illinois, USA
|
| Original price: | $4,200 (1968 )
|
| Variants |
| Farmall 504: | row-crop
|
| IH 504: | utility
|
| 504HC: | high-clearance
|
| IH 2504: | industrial
|
| International Harvester 504 Power |
| Drawbar (claimed): | 41 hp
30.6 kW
|
| PTO (claimed): | 46 hp
34.3 kW
|
| Plows: | 3-4
|
| International Harvester 504 Engines |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | power
|
| Cab: | Open operator station.
|
| Transmissions: | 5-speed unsynchronized gear
|
| | 10-speed two-speed power shift
|
| Photos |
| | International Harvester 504 photos... |
| Capacity |
| Fuel: | 15 gal
56.8 L
|
| Hydraulic system: | 13 gal
49.2 L
|
| Hydraulics |
| Capacity: | 13 gal
49.2 L
|
| Pump flow: | 7 gpm
26.5 lpm (hitch pump)
|
| | 12 gpm
45.4 lpm (steering/remote pump)
|
| | 17 gpm
64.3 lpm (optional loader pump)
|
| Tractor hitch |
| Rear Type: | I
|
| | II*Optional
|
| Control: | position and draft control
|
| Type: | IH Fast Hitch*Optional
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| Dimensions & Tires |
| Wheelbase: | 73 inches
185 cm
|
| Weight: | 4458 lbs
2022 kg
|
| Front tire: | 6.00-16
|
| Rear tire: | 12.4-28
|
| 504 Serial Numbers |
| Location: | Left or right side of clutch housing
|
photo of 504 serial number
| | 1962: | 501
|
| 1963: | 3376
|
| 1964: | 6797
|
| 1965: | 10996
|
| 1966: | 14695
|
| 1967: | 17992
|
| 1968: | 20392
|
how to read serial numbers...
|
| Belt Pulley |
| Diameter: | 11 inches
27 cm
|
| RPM: | 1158
|
| Speed: | 3334 ft/min
1016.20 meters/min
|
|
