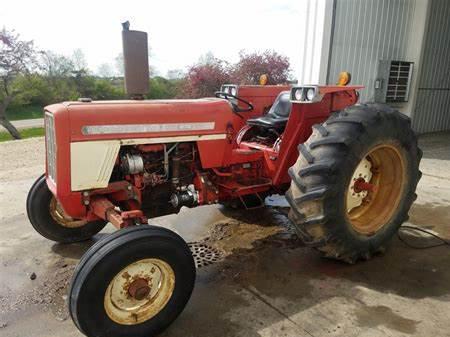

International Harvester 674 Tractors
 |
|
Power: 65 hp[P]
Date of manufacture : 1973 - 1977 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Utility tractor
|
| Factory: | Doncaster, England
|
| Original price: | $11,300 (1978 )
|
| International Harvester 674 Power |
| Drawbar (tested): | 54.45 hp
40.6 kW
|
| PTO (tested): | 61.56 hp
45.9 kW
|
| International Harvester 674 Engines |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Open operator station. Four-post ROPS and cab available.
|
| Transmission: | 8-speed gear
|
| Photos |
| | International Harvester 674 photos... |
| Hydraulics |
| Pump flow: | 13 gpm
49.2 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | position and draft control
|
| Rear lift: | 3969 lbs
1800 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| Dimensions & Tires |
| Wheelbase: | 84.5 inches
214 cm
|
| Weight: | 5,650 lbs
2562 kg
|
| Front tire: | 7.50-16
|
| Rear tire: | 16.9-30
|
| Full dimensions and tires ... |
| 674 Serial Numbers |
| Location: | Transmission housing, left side
|
| 1973: | 100001
|
| 1974: | 101862
|
| 1975: | 103172
|
| 1976: | 105946
|
| 1977: | 107555
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
|
