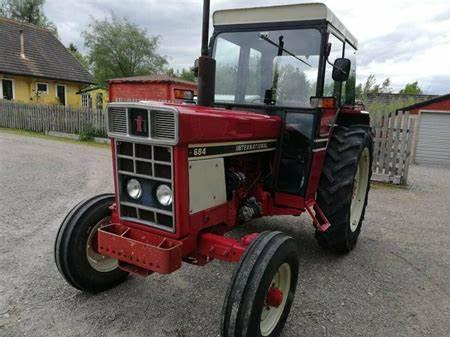

International Harvester 684 Tractors
 |
|
Power: 69 hp
Date of manufacture : 1977 - 1984 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Utility tractor
|
| Factory: | Doncaster, England
|
| Original price: | $21,100 (1984 )
|
| International Harvester 684 Power |
| Engine: | 69 hp
51.5 kW
|
| Drawbar (claimed): | 55.9 hp
41.7 kW
|
| PTO (claimed): | 62.5 hp
46.6 kW
|
| Plows: | 4
|
| Drawbar (tested): | 54.56 hp
40.7 kW
|
| PTO (tested): | 62.52 hp
46.6 kW
|
| International Harvester 684 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | independent hydraulic wet disc
|
| Cab: | ROPS canopy or cab optional
|
| Transmissions: | 8-speed syncromesh
|
| | 16-speed two-speed power shift
|
| Photos |
| | International Harvester 684 photos... |
| Capacity |
| Fuel: | 20 gal
75.7 L
|
| Hydraulic system: | 9 gal
34.1 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 9 gal
34.1 L
|
| Valves: | 1 or 2
|
| Pump flow: | 13 gpm
49.2 lpm
|
| | 15.4 gpm
58.3 lpm (optional)
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | position and draft control
|
| Rear lift: | 3600 lbs
1632 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | hydraulic wet disc
|
| Rear RPM: | 540
|
| Dimensions & Tires |
| Utility Wheelbase: | 88 inches
223 cm
|
| Row-crop Wheelbase: | 84.5 inches
214 cm
|
| 4WD Wheelbase: | 85.2 inches
216 cm
|
| Low-profile Wheelbase: | 83.75 inches
212 cm
|
| Weight: | 5620 to 6765 pounds
|
| Front tire: | 7.50-16
|
| Rear tire: | 16.9-30
|
| Full dimensions and tires ... |
| 684 Serial Numbers |
| Location: | Front axle support on right side of tractor.
|
| 1978: | 501
|
| 1979: | 1687
|
| 1980: | 3533
|
| 1981: | 6037
|
| 1982: | 8001
|
| 1983: | 8512
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging amps: | 45
|
| Battery volts: | 12
|
|
