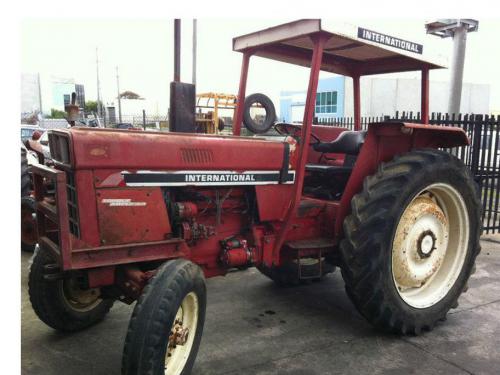

International Harvester 685 Tractors
|
|
Power: 71 hp
Date of manufacture : 1981 - 1985 |
Production |
Manufacturer: | International Harvester
|
Type: | Utility tractor
|
Factory: | Doncaster, England
|
International Harvester 685 Power |
Engine (gross): | 71.8 hp 53.5 kW
|
Engine (net): | 69 hp 51.5 kW
|
PTO (claimed): | 63.3 hp 47.2 kW
|
International Harvester 685 Engine |
Mechanical |
Chassis: | 4x2 2WD
|
| 4x4 MFWD 4WD
|
Differential lock: | rear standard
|
Steering: | power
|
Brakes: | hydraulic wet disc
|
Cab: | Cab standard. Economy and Deluxe cabs available.
|
Transmissions: | 8-speed synchromesh
|
| 16-speed two-speed power shift
|
Photos |
| International Harvester 685 photos... |
Hydraulics |
Pump flow: | 12.4 gpm 46.9 lpm
|
Tractor hitch |
Rear Type: | II
|
Control: | position and draft control
|
Rear lift: | 4400 lbs 1995 kg
|
| 5250 lbs 2381 kg *With optional assistor ram
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Clutch: | hydraulic wet disc
|
Rear RPM: | 540/1000
|
Dimensions & Tires |
Wheelbase: | 88.2 inches 224 cm
|
Weight: | 6703 to 7188 pounds
|
Front tire: | 10.00-16
|
Rear tire: | 16.9-34
|
Full dimensions and tires ... |
685 Serial Numbers |
Location: | Serial number plate on right front of tractor frame, above the front axle.
|
Electrical |
Ground: | negative
|
Battery volts: | 12
|
|
