Navigation: Home > International Harvester > 686

International Harvester 686 Tractors

International Harvester 686
Power: 73 hp[P]
Date of manufacture :
1976 - 1980
Production
Manufacturer:International Harvester
Total built:6,000
Original price:$14,700 (1980 )
Mechanical
Chassis:4x2 2WD
Steering:power
Brakes:disc
Cab:Two-post fixed ROPS.
Transmission:10-speed two-speed power shift

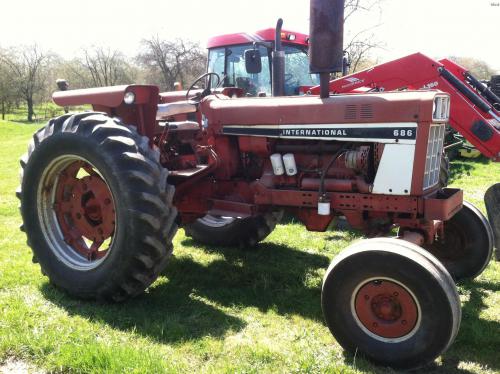

Photos
International Harvester 686 photos...
Capacity
Fuel:31 gal
117.3 L
Hydraulic system:16 gal
60.6 L
Hydraulics
Type:open center
Capacity:16 gal
60.6 L
Total flow:12 gpm
45.4 lpm
Tractor hitch
Rear Type:II
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
Dimensions & Tires
Wheelbase:103 inches
261 cm
Weight:7770 lbs
3524 kg
Front tire:7.50-16
Rear tire:15.5-38
Full dimensions and tires ...
686 Serial Numbers
Location:Clutch housing on right side.
1976:7500
1977:7729
1978:9899
1979:11417
1980:12923

how to read serial numbers...
