Navigation: Home > International Harvester > 766

International Harvester 766 Tractors

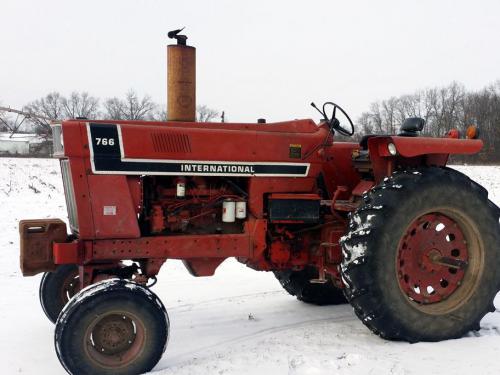

International Harvester 766
Power: 88 hp[P]
Date of manufacture :
1971 - 1976
Production
Manufacturer:International Harvester
Type:Row-Crop tractor
Factory:Rock Island, Illinois, USA
Total built:10,799
Original price:$13,400 (1976)
International Harvester 766 Power
Drawbar (tested):73.37 hp
54.7 kW
PTO (tested):85.45 hp
63.7 kW
International Harvester 766 Engines
Mechanical
Chassis:4x2 2WD
Steering:hydrostatic power
Brakes:hydraulic dry disc
Cab:Open operator station. Cab optional.
Transmissions:8-speed sliding gear
 16-speed partial power shift
Photos
International Harvester 766 photos...
Hydraulics
Type:open center
Pump flow:12 gpm
45.4 lpm
Tractor hitch
Rear Type:2
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540, 1000
Dimensions & Tires
Wheelbase:102.7 inches
260 cm
Weight:10,300 lbs
4672 kg
Front tire:9.5L-15
Rear tire:18.4-34
Full dimensions and tires ...
766 Serial Numbers
Location:Left side of clutch housing
photo of 766 serial number

1971:7101
1972:7416
1973:9611
1974:12378
1975:14630
1976:16840

how to read serial numbers...
