International Harvester 785 Tractors

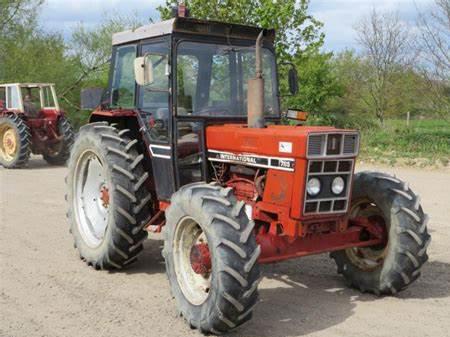

International Harvester 785
Power: 80 hp
Date of manufacture :
1981 - 1985
Production
Manufacturer:International Harvester
Type:Utility tractor
Factory:Doncaster, England
International Harvester 785 Power
Engine (gross):80 hp
59.7 kW
Engine (net):77.4 hp
57.7 kW
PTO (claimed):68.3 hp
50.9 kW
International Harvester 785 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Differential lock:rear standard
Steering:power
Brakes:hydraulic wet disc
Cab:Cab standard. Economy and Deluxe cabs available.
Transmissions:8-speed synchromesh
 16-speed two-speed power shift
Hydraulics
Pump flow:12.4 gpm
46.9 lpm
Tractor hitch
Rear Type:II
Control:position and draft control
Rear lift:4400 lbs
1995 kg
 5250 lbs
2381 kg *With optional assistor ram
Power Take-off (PTO)
Rear PTO:independent
Clutch:hydraulic wet disc
Rear RPM:540/1000
Dimensions & Tires
Wheelbase:88.19 inches
224 cm
Front tire:10.00-16
Rear tire:16.9-34
Full dimensions and tires ...
785 Serial Numbers
Location:Serial number plate on right front of tractor frame, above the front axle.
