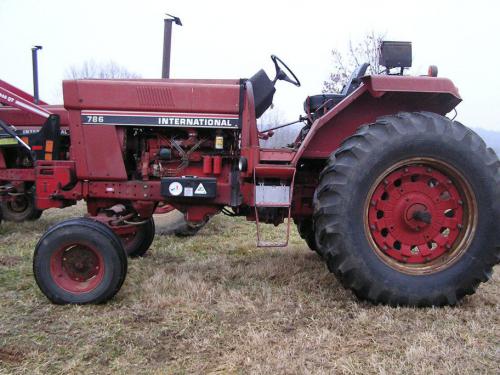

International Harvester 786 Tractors
 |
|
Power: 89 hp[P]
Date of manufacture : 1980 - 1981 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Row-Crop tractor
|
| Factories: | Geelong, Australia
|
| | Rock Island, Illinois, USA
|
| Total built: | 1,844
|
| International Harvester 786 Power |
| Drawbar (tested): | 69.04 hp
51.5 kW
|
| PTO (tested): | 80.20 hp
59.8 kW
|
| International Harvester 786 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | power assist
|
| Brakes: | hydraulic disc
|
| Cab: | Open operator station. Cab optional.
|
| Transmission: | 16-speed
|
| Photos |
| | International Harvester 786 photos... |
| Capacity |
| Fuel: | 50 gal
189.3 L
|
| | 22 gal
83.3 L (auxiliary tank)
|
| Hydraulic system: | 22.5 gal
85.2 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 22.5 gal
85.2 L
|
| Tractor hitch |
| Rear Type: | 2/1
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 101 inches
256 cm
|
| Weight: | 10600 to 11590 pounds
|
| Front tire: | 9.5L-15
|
| Rear tire: | 18.4-34
|
| Full dimensions and tires ... |
| 786 Serial Numbers |
| Location: | Rear frame on the right side.
|
| 1980: | 6601
|
| 1981: | 8936
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 42
|
| | 61 (with cab)
|
| Batteries: | 2
|
| Battery CCA: | 470
|
| Battery volts: | 12
|
|
