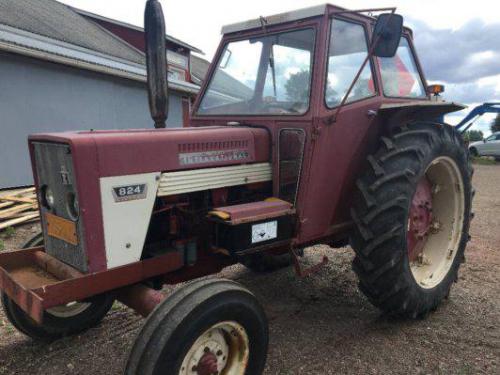

International Harvester 824 Tractors
 |
|
Power: 75 hp
Date of manufacture : 1971 - 1974 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Utility tractor
|
| Factory: | Neuss, Germany
|
| International Harvester 824 Power |
| Engine: | 75 hp
55.9 kW
|
| International Harvester 824 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | dry disc
|
| Cab: | Open operator station. Cab optional.
|
| Transmissions: | 8-speed
|
| | 12-speed partial power shift
|
| Photos |
| | International Harvester 824 photos... |
| Hydraulics |
| Pump flow: | 7.5 gpm
28.4 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | position and draft control
|
| Rear lift: | 5953 lbs
2700 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 83.5 inches
212 cm
|
| Weight: | 6934 to 7596 pounds
|
| Front tire: | 7.50-18
|
| 2WD Rear tire: | 13.6-38
|
| Full dimensions and tires ... |
| Electrical |
| Charging system: | Bosch generator
|
| Charging amps: | 11
|
| | 16
|
| Batteries: | 2 (6V)
|
| | 1 (12V)
|
| Battery volts: | 6
|
| | 12
|
|
