Kioti DS3510 Tractors

Kioti DS3510
Power: 34 hp
Date of manufacture :
2011 - 2016
Production
Manufacturer:Kioti (a part of Daedong)
Type:Compact Utility tractor
Factory:Daegu, South Korea
Kioti DS3510 Power
Engine (gross):34 hp
25.4 kW
PTO (claimed):27.6 hp
20.6 kW
Kioti DS3510 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Final drives:mechanical rear
Steering:power
Brakes:wet disc
Cab:Two-post folding ROPS.
Transmission:8-speed shuttle

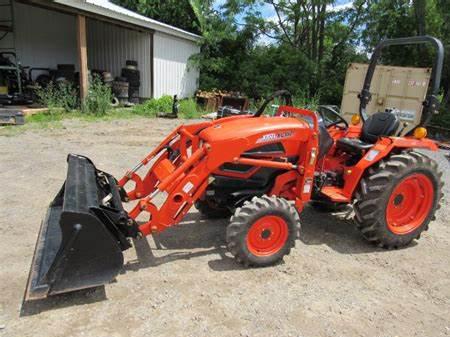

Photos
Kioti DS3510 photos...
Hydraulics
Type:open center
Total flow:12.7 gpm
48.1 lpm
Tractor hitch
Rear Type:I
Control:position control
Rear lift (at 24"/610mm):2238 lbs
1015 kg
Power Take-off (PTO)
Rear PTO:live
Clutch:two-stage dry disc
Rear RPM:540/1000
Dimensions & Tires
Wheelbase:64.6 inches
164 cm
Weight:2897 lbs
1314 kg
Front tire:7-14
Rear tire:11.2-24
Electrical
Ground:negative
Battery volts:12
