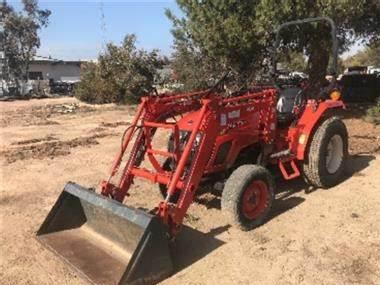

Kioti DS5010 Tractors

Kioti DS5010
Power: 45 hp
Date of manufacture :
2009 - 2019
Production
Manufacturer:Kioti (a part of Daedong)
Type:Compact Utility tractor
Factory:South Korea
Kioti DS5010 Power
Engine (gross):45 hp
33.6 kW
Kioti DS5010 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:mechanical rear
Steering:power
Brakes:wet disc
Cab:Two-post folding ROPS.
Transmission:8-speed hydraulic shuttle
Hydraulics
Type:open center
Valves:1 or 2
Total flow:13.2 gpm
50.0 lpm
Tractor hitch
Rear Type:I
Control:position control
Rear lift (at 24"/610mm):2425 lbs
1099 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540
Dimensions & Tires
Wheelbase:72.8 inches
184 cm
Weight:3548 lbs
1609 kg
Front tire:8-16
Rear tire:13.6-24
Electrical
Ground:negative
Charging system:alternator
Battery volts:12
