Kioti DS4510 Tractors

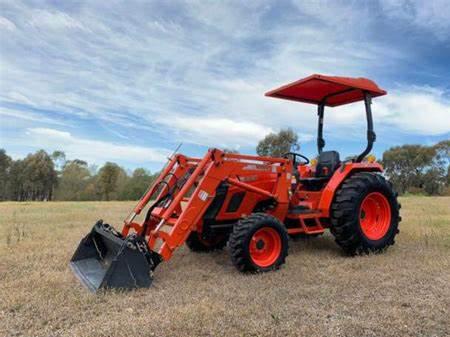

Kioti DS4510
Power: 45 hp
Date of manufacture :
2009 - 2016
Production
Manufacturer:Kioti (a part of Daedong)
Type:Compact Utility tractor
Factory:Daegu, South Korea
Kioti DS4510 Power
Engine (gross):45 hp
33.6 kW
PTO (claimed):35.1 hp
26.2 kW
Kioti DS4510 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:rear standard
Steering:power
Brakes:wet disc
Cab:Foldable ROPS. Optional canopy.
Transmission:8-speed shuttle
Hydraulics
Type:open center
Valves:0 to 2
Total flow:13.18 gpm
49.9 lpm
Tractor hitch
Rear Type:I
Rear lift (at 24"/610mm):2,425 lbs
1099 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540
Dimensions & Tires
Wheelbase:72.8 inches
184 cm
Weight:3,538 lbs
1604 kg
Front tire:8-16
Rear tire:13.6-24
Electrical
Ground:negative
Battery volts:12
