| Production |
| Manufacturer: | Kioti (a part of Daedong)
|
| Type: | Compact Utility tractor
|
| Factory: | Daegu, South Korea
|

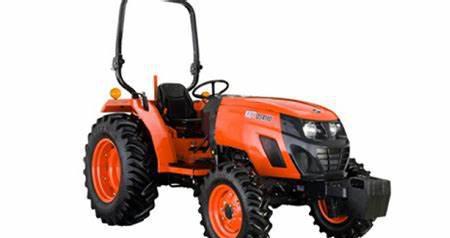

| Kioti DS4110 Power |
| Engine (gross): | 41 hp
30.6 kW
|
| PTO (claimed): | 31.4 hp
23.4 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Differential lock: | rear standard
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Foldable ROPS. Optional canopy.
|
| Transmission: | 8-speed shuttle
|
| Hydraulics |
| Type: | open center
|
| Valves: | 0 to 2
|
| Total flow: | 13.18 gpm
49.9 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Rear lift (at 24"/610mm): | 2,425 lbs
1099 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| Dimensions & Tires |
| Wheelbase: | 72.8 inches
184 cm
|
| Weight: | 3,527 lbs
1599 kg
|
| Front tire: | 8-16
|
| Rear tire: | 13.6-24
|
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
|
