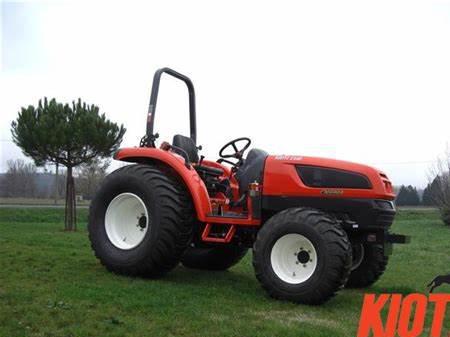

Kioti EX40 Tractors

Kioti EX40
Power: 41 hp
Date of manufacture :
2008 - 2013
Production
Manufacturer:Kioti (a part of Daedong)
Type:Compact Utility tractor
Factory:South Korea
Kioti EX40 Power
Engine (gross):41 hp
30.6 kW
Shuttle PTO (claimed):32.1 hp
23.9 kW
Hydro PTO (claimed):30.2 hp
22.5 kW
Kioti EX40 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:mechanical rear
Steering:power
Brakes:wet disc
Cab:Cab standard with air-conditioning.
Transmissions:24-speed synchro shuttle
 hydrostatic
Hydraulics
Type:open center
Pump flow:15.3 gpm
57.9 lpm
Tractor hitch
Rear Type:I
Control:position and draft control
Rear lift (at ends):6481.6 lbs
2940 kg
Rear lift (at 24"/610mm):5496.1 lbs
2493 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540
Mid RPM:2000
Dimensions & Tires
Wheelbase:74 inches
187 cm
Weight:4310 to 4387 pounds
Front tire:8-16
Rear tire:13.6-24
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Battery volts:12
