| Production |
| Manufacturer: | Kioti (a part of Daedong)
|
| Type: | Compact Utility tractor
|
| Factory: | Daegu, South Korea
|
| Kioti LB1714 Power |
| Engine: | 17 hp
12.7 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | manual
|
| Brakes: | wet disc
|
| Cab: | Two-post ROPS.
|
| Transmission: | 8-speed partial synchromesh with mechanical shuttle
|
| Photos |

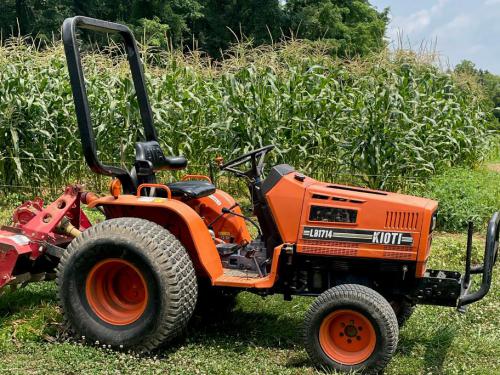

| | Kioti LB1714 photos... |
| Hydraulics |
| Total flow: | 4.5 gpm
17.0 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Rear lift (at ends): | 1,000 lbs
453 kg
|
| Power Take-off (PTO) |
| Rear PTO: | transmission
|
| Rear RPM: | 540/1000
|
| Front PTO: | engine
|
| Front RPM: | 2600
|
| Dimensions & Tires |
| Wheelbase: | 56 inches
142 cm
|
| Weight: | 1,900 lbs
861 kg
|
| Front tire: | 6-12
|
| Rear tire: | 9.5-20
|
| Full dimensions and tires ... |
| LB1714 Serial Numbers |
| Location: | On the tractor's transmission housing ahead of the clutch pedal.
|
| 1988: | 400001
|
| 1989: | 500001
|
| 1990: | 600001
|
| 1991: | 700001
|
| 1992: | 800001
|
| 1993: | 900001
|
how to read serial numbers...
| |
