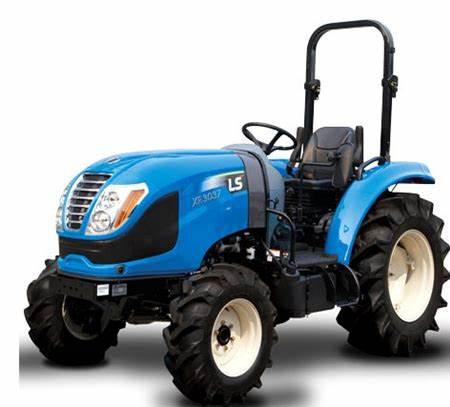

LS XR3037H Tractors

LS XR3037H
Power: 36 hp
Date of manufacture :
2013 - 2018
Production
Manufacturer:LS
Type:Compact Utility tractor
LS XR3037H Power
Engine (gross):36.2 hp
27.0 kW
PTO (claimed):29.2 hp
21.8 kW
LS XR3037H Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post foldable ROPS. Cab optional with air-conditioning.
Transmission:hydrostatic
Hydraulics
Pump flow:8.2 gpm
31.0 lpm
Total flow:13.4 gpm
50.7 lpm
Steering flow:5.2 gpm
19.7 lpm
Tractor hitch
Rear Type:I
Control:position and draft control
Rear lift:1808 lbs
820 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
Mid PTO:independent (optional)
Mid RPM:2000
Dimensions & Tires
Wheelbase:66 inches
167 cm
Weight:3220 to 3590 pounds
Front tire:7-14
Rear tire:11.2-24
Electrical
Ground:negative
Charging system:alternator
Charging amps:85
Battery volts:12
