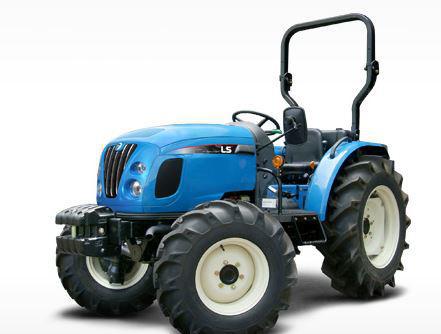

LS XR3140 Tractors

LS XR3140
Power: 40 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:LS
Type:Compact Utility tractor
LS XR3140 Power
Engine (gross):40 hp
29.8 kW
LS XR3140 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Cab standard with air-conditioning.
Transmission:hydrostatic
Hydraulics
Valves:2
Pump flow:8.2 gpm
31.0 lpm
Total flow:13.7 gpm
51.9 lpm
Steering flow:5.5 gpm
20.8 lpm
Tractor hitch
Rear Type:I
Control:position and draft control
Rear lift (at ends):1808 lbs
820 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
Mid RPM:2000
Dimensions & Tires
Wheelbase:69 inches
175 cm
Weight:3661 lbs
1660 kg
Front tire:7-14
Rear tire:11.2-24
Electrical
Ground:negative
Charging system:alternator
Charging amps:70
Charging volts:12
Battery volts:12
