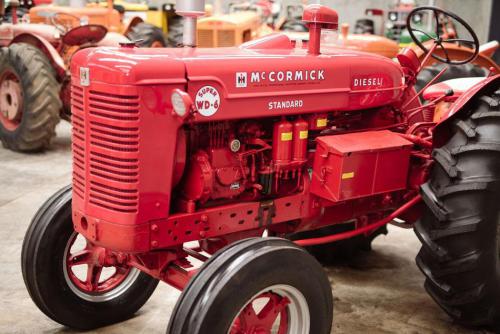

McCormick-Deering Super WD-6 Tractors
|
|
Power: 45 hp[P]
Date of manufacture : 1952 - 1954 |
Production |
Manufacturer: | McCormick-Deering (a part of International Harvester)
|
Factory: | Rock Island, Illinois, USA
|
Variants |
Super W-6: | gasoline engine
|
WD6-TA: | Torque Amplifier transmission
|
McCormick-Deering Super WD-6 Power |
Drawbar (claimed): | 33 hp 24.6 kW
|
PTO (claimed): | 41 hp 30.6 kW
|
Drawbar (tested): | 38.15 hp 28.4 kW
|
Belt (tested): | 46.84 hp 34.9 kW
|
McCormick-Deering Super WD-6 Engine |
Mechanical |
Chassis: | 4x2 2WD
|
Brakes: | disc
|
Cab: | Open operator station.
|
Transmissions: | 5-speed gear
|
| 10-speed two-speed power shift
|
Photos |
| McCormick-Deering Super WD-6 photos... |
Dimensions & Tires |
Weight: | 5,500 lbs 2494 kg
|
Front tire: | 6.00x16
|
Rear tire: | 15.00x30
|
Full dimensions and tires ... |
Super WD-6 Serial Numbers |
Location: | Serial number on the left side of the Super WD-6, on the clutch housing.
|
photo of Super WD-6 serial number
| 1952: | 501
|
1953: | 2277
|
1954: | 8997
|
Final: | 9084
|
how to read serial numbers...
| |
