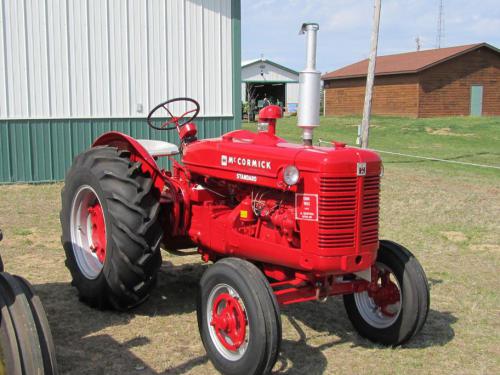

McCormick-Deering Super W-4 Tractors
 |
|
Power: 33 hp[P]
Date of manufacture : 1953 - 1954 |
| Production |
| Manufacturer: | McCormick-Deering (a part of International Harvester)
|
| Type: | Standard-tread tractor
|
| Total built: | 28,784
|
| Original price: | $2,100 (1954)
|
| McCormick-Deering Super W-4 Power |
| Drawbar (claimed): | 23 hp
17.2 kW
|
| PTO (claimed): | 30 hp
22.4 kW
|
| Drawbar (tested): | 29.31 hp
21.9 kW
|
| Belt (tested): | 33.85 hp
25.2 kW
|
| McCormick-Deering Super W-4 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | manual
|
| Brakes: | mechanical disc
|
| Cab: | Open operator station.
|
| Transmission: | 5-speed sliding gear
|
| Photos |
| | McCormick-Deering Super W-4 photos... |
| Power Take-off (PTO) |
| Rear RPM: | 540
|
| Dimensions & Tires |
| Wheelbase: | 89.25 inches
226 cm
|
| Weight: | 3875 lbs
1757 kg
|
| Front tire: | 5.50-16
|
| Rear tire: | 11-38
|
| Full dimensions and tires ... |
| Super W-4 Serial Numbers |
| Location: | Left side of tractor, on clutch housing
|
photo of Super W-4 serial number
| | 1953: | 501
|
| 1954: | 2668
|
how to read serial numbers...
|
| Links |
| Farmall-H.com: detailed information on the H |
| Belt Pulley |
| Diameter: | 9.75 inches
24 cm
|
| Width: | 7.5 inches
19 cm
|
| RPM: | 2601
|
| Speed: | 1019 ft/min
310.59 meters/min
|
|
