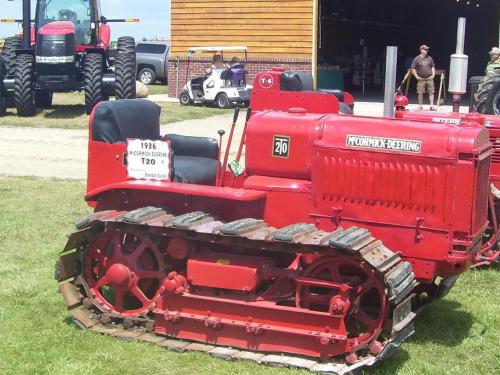

McCormick-Deering T-20 Tractors
|
|
Power: 27 hp[B]
Date of manufacture : 1931 - 1939 |
Production |
Manufacturer: | McCormick-Deering (a part of International Harvester)
|
Type: | Agricultural Crawler tractor
|
Factory: | Chicago, Illinois, USA
|
Total built: | 15,199
|
McCormick-Deering T-20 Power |
Drawbar (claimed): | 18 hp 13.4 kW
|
Belt (claimed): | 25 hp 18.6 kW
|
Drawbar (tested): | 23.33 hp 17.4 kW
|
Belt (tested): | 26.59 hp 19.8 kW
|
McCormick-Deering T-20 Engine |
Mechanical |
Chassis: | crawler
|
Steering: | Dry, single plate clutch, 11-inch
|
Brakes: | dry disc
|
Cab: | Open operator station.
|
Transmission: | 3-speed gear
|
Photos |
| McCormick-Deering T-20 photos... |
Dimensions & Tracks |
Weight: | 7,010 lbs 3179 kg
|
tracks |
Full dimensions and tracks ... |
T-20 Serial Numbers |
Location: | Seat, right side
|
1931: | ST501
|
1932: | ST1420
|
1933: | ST151
|
1934: | ST2685
|
1935: | ST3586
|
1936: | ST5973
|
1937: | ST9117
|
1938: | ST13173
|
1939: | ST14636
|
how to read serial numbers...
| |
