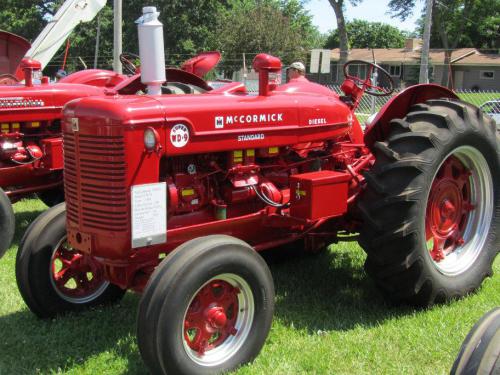

McCormick-Deering Super WD-9 Tractors
 |
|
Power: 72 hp[B]
Date of manufacture : 1953 - 1956 |
| Production |
| Manufacturer: | McCormick-Deering (a part of International Harvester)
|
| Type: | Standard-tread tractor
|
| Factory: | Melrose Park, Illinois, USA
|
| Total built: | 10,938
|
| Variants |
| Super WDR-9: | rice special
|
| McCormick-Deering Super WD-9 Power |
| Belt (claimed): | 65 hp
48.5 kW
|
| Drawbar (tested): | 57.37 hp
42.8 kW
|
| Belt (tested): | 65.19 hp
48.6 kW
|
| McCormick-Deering Super WD-9 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | manual
|
| Brakes: | mechanical disc
|
| Cab: | Open operator station.
|
| Transmission: | 5-speed gear
|
| Photos |
| | McCormick-Deering Super WD-9 photos... |
| Power Take-off (PTO) |
| Rear RPM: | 540
|
| Dimensions & Tires |
| Wheelbase: | 83.4 inches
211 cm
|
| Weight: | 7,300 lbs
3311 kg
|
| Front tire: | 7.50x18
|
| Rear tire: | 18.00x26
|
| Full dimensions and tires ... |
| Super WD-9 Serial Numbers |
| Location: | Serial number plate on the right side of the Super WD-9 clutch housing.
|
photo of Super WD-9 serial number
| | 1953: | 501
|
| 1954: | 1935
|
| 1955: | 5232
|
| 1956: | 6864
|
| Final: | 7232
|
| 1956: | 6866 (WDR-9)
|
| Final: | 7242 (WDR-9)
|
how to read serial numbers...
|
| Belt Pulley |
| Diameter: | 14 inches
35 cm
|
| Width: | 8.5 inches
21 cm
|
| RPM: | 707
|
| Speed: | 2593 ft/min
790.35 meters/min
|
|
