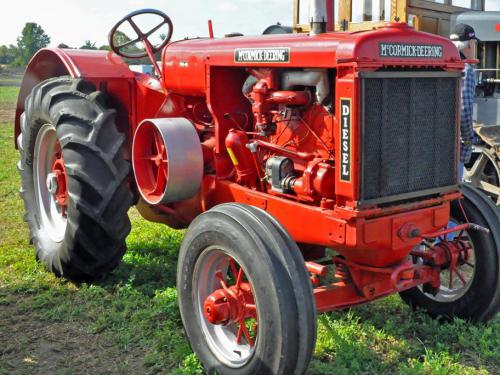

McCormick-Deering WD-40 Tractors
 |
|
Power: 48 hp[B]
Date of manufacture : 1935 - 1940 |
| Production |
| Manufacturer: | McCormick-Deering (a part of International Harvester)
|
| Type: | Standard-tread tractor
|
| Factory: | Milwaukee, Wisconsin, USA
|
| Variants |
| WA-40: | gasoline
|
| WK-40: | kerosene
|
| WD-40: | diesel
|
| McCormick-Deering WD-40 Power |
| Drawbar (claimed): | 28 hp
20.9 kW
|
| Belt (claimed): | 44 hp
32.8 kW
|
| Plows: | 4 (14-inch)
|
| Drawbar (tested): | 37.21 hp
27.7 kW
|
| Belt (tested): | 48.79 hp
36.4 kW
|
| McCormick-Deering WD-40 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Final drives: | spur gear
|
| Steering: | manual
|
| Cab: | Open operator station
|
| Transmission: | 3-speed gear
|
| Photos |
| | McCormick-Deering WD-40 photos... |
| Dimensions & Tires |
| Weight: | 7,550 lbs
3424 kg
|
| Front tire: | 34x6
|
| Rear tire: | 50x12
|
| Full dimensions and tires ... |
| Belt Pulley |
| Diameter: | 16.75 inches
42 cm
|
| Width: | 9 inches
22 cm
|
| RPM: | 588
|
| Speed: | 2580 ft/min
786.38 meters/min
|
|
