McCormick-Deering WD-9 Tractors
 |
|
Power: 46 hp[B]
Date of manufacture : 1940 - 1954 |
| Production |
| Manufacturer: | McCormick-Deering (a part of International Harvester)
|
| Type: | Standard-tread tractor
|
| Factories: | Milwaukee, Wisconsin, USA
|
| | Melrose Park, Illinois, USA
|
| Variants |
| W-9: | gasoline
|
| WD-9: | diesel
|
| I-9: | industrial
|
| McCormick-Deering WD-9 Power |
| Drawbar (claimed): | 33 hp
24.6 kW
|
| Belt (claimed): | 42 hp
31.3 kW
|
| Drawbar (tested): | 42.57 hp
31.7 kW
|
| Belt (tested): | 46.43 hp
34.6 kW
|
| McCormick-Deering WD-9 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | manual
|
| Brakes: | differential mechanical contracting band
|
| Cab: | Open operator station.
|
| Transmission: | 5-speed
|
| Photos |

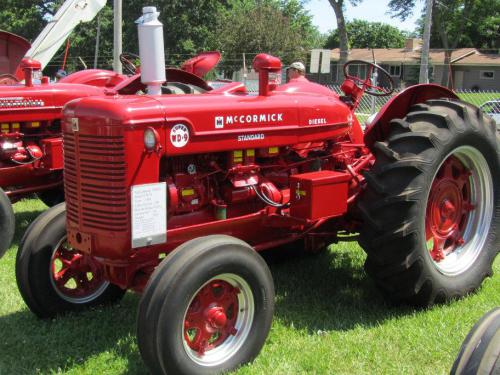

| | McCormick-Deering WD-9 photos... |
| Dimensions & Tires |
| Weight: | 6,650 lbs
3016 kg
|
| Front tire: | 30-6
|
| Rear tire: | 48-12
|
| Full dimensions and tires ... |
| WD-9 Serial Numbers |
| Location: | Serial number plate near the fuel tank.
|
| 1940: | 501
|
| 1941: | 578
|
| 1942: | 2993
|
| 1943: | 3651
|
| 1944: | 5394
|
| 1945: | 11459
|
| 1946: | 17289
|
| 1947: | 22714
|
| 1948: | 29207
|
| 1949: | 36159
|
| 1950: | 45551
|
| 1951: | 51739
|
| 1952: | 59407
|
| 1953: | 64014
|
how to read serial numbers...
| |
