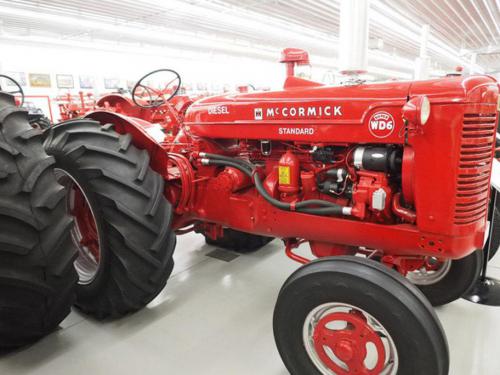

McCormick-Deering WD-6 Tractors
 |
|
Power: 40 hp[B]
Date of manufacture : 1940 - 1952 |
| Production |
| Manufacturer: | McCormick-Deering (a part of International Harvester)
|
| Type: | Standard-tread tractor
|
| Factory: | Rock Island, Illinois, USA
|
| Variants |
| ID-6: | industrial
|
| MD: | row-crop
|
| W-6: | gasoline engine
|
| McCormick-Deering WD-6 Power |
| Drawbar (claimed): | 31.4 hp
23.4 kW
|
| Belt (claimed): | 36.4 hp
27.1 kW
|
| Drawbar (tested): | 31.02 hp
23.1 kW
|
| Belt (tested): | 34.75 hp
25.9 kW
|
| McCormick-Deering WD-6 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | manual
|
| Cab: | Open operator station.
|
| Transmission: | 5-speed gear
|
| Power Take-off (PTO) |
| Rear PTO: | transmission
|
| Rear RPM: | 540
|
| Dimensions & Tires |
| Wheelbase: | 76 inches
193 cm
|
| Weight: | 4350 lbs
1973 kg
|
| Front tire: | 22.50-4
|
| Rear tire: | 42-10
|
| Full dimensions and tires ... |
| WD-6 Serial Numbers |
| Location: | Serial number plate located on the clutch housing.
|
| 1940: | WDBK 516
|
| 1941: | WDBK 1225
|
| 1942: | WDBK 3718
|
| 1943: | ----
|
| 1944: | WDBK 6371
|
| 1945: | WDBK 9509
|
| 1946: | WDBK 14019
|
| 1947: | WDBK 16811
|
| 1948: | WDBK 24020
|
| 1949: | WDBK 28906
|
| 1950: | WDBK 35566
|
| 1951: | WDBK 39443
|
| 1952: | WDBK 45175
|
how to read serial numbers...
|
| Belt Pulley |
| Diameter: | 11 inches
27 cm
|
| Width: | 7.5 inches
19 cm
|
| RPM: | 899
|
| Speed: | 2588 ft/min
788.82 meters/min
|
|
