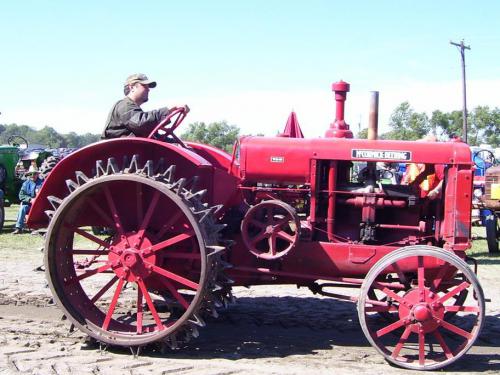

McCormick-Deering W-40 Tractors
 |
|
Power: 50 hp[B]
Date of manufacture : 1935 - 1940 |
| Production |
| Manufacturer: | McCormick-Deering (a part of International Harvester)
|
| Type: | Standard-tread tractor
|
| Factory: | Milwaukee, Wisconsin, USA
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| Final drives: | bull gear
|
| Steering: | manual
|
| Cab: | Open operator station.
|
| Transmissions: | 3-speed unsynchronized gear
|
| | 4-speed unsynchronized gear
|
| Photos |
| | McCormick-Deering W-40 photos... |
| Power Take-off (PTO) |
| Rear RPM: | 553
|
| Dimensions & Tires |
| Wheelbase: | 85 inches
215 cm
|
| Weight: | 6100 lbs
2766 kg
|
| Front tire: | 34x6
|
| Rear tire: | 50x12
|
| Full dimensions and tires ... |
| W-40 Serial Numbers |
| 1935: | 501
|
| 1936: | 1441
|
| 1937: | 5120
|
| 1938: | 7665
|
| 1939: | 9756
|
| 1940: | 10323
|
how to read serial numbers...
|
| Belt Pulley |
| Diameter: | 15.7 inches
39 cm
|
| Width: | 9 inches
22 cm
|
| RPM: | 645
|
| Speed: | 2647 ft/min
806.81 meters/min
|
|
