Navigation: Home > Minneapolis-Moline > G705

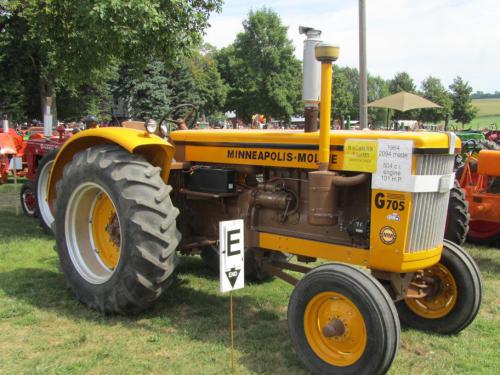

Minneapolis-Moline G705 Tractors
 |
|
Power: 112 hp[P]
Date of manufacture : 1962 - 1965 |
| Production |
| Manufacturer: | Minneapolis-Moline
|
| Type: | Standard-tread tractor
|
| Factory: | Hopkins, Minnesota, USA
|
| Original price: | $7,000 (1965)
|
| Variants |
| G705: | 2WD
|
| G706: | 4WD
|
| Minneapolis-Moline G705 Power |
| Drawbar (claimed): | 90 hp
67.1 kW
|
| PTO (claimed): | 101 hp
75.3 kW
|
| Drawbar (tested): | 90.80 hp
67.7 kW
|
| PTO (tested): | 101.05 hp
75.4 kW
|
| Minneapolis-Moline G705 Engines |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | power assist
|
| Brakes: | differential disc
|
| Cab: | Open operator station. Cab optional with available air-conditioning.
|
| Transmission: | 5-speed unsynchronized gear
|
| Photos |
| | Minneapolis-Moline G705 photos... |
| Power Take-off (PTO) |
| Rear RPM: | 540
|
| Dimensions & Tires |
| Wheelbase: | 96.2 inches
244 cm
|
| Weight: | 7985 to 8155 pounds
|
| Front tire: | 7.50-18
|
| Rear tire: | 18.4-34
|
| Full dimensions and tires ... |
| G705 Serial Numbers |
| Location: | Serial number plate on the right side of the Minneapolis-Moline G705 tractor frame, ahead of the operator platform and below the battery tray.
|
photo of G705 serial number
| | 1962: | 23800001 (LP)
|
| 1963: | 23800079 (LP)
|
| 1964: | 23800591 (LP)
|
| 1965: | 23801093 (LP)
|
| Final: | 23801223 (LP)
|
| 1962: | 23900050 (diesel)
|
| 1963: | 23900051 (diesel)
|
| 1964: | 23900899 (diesel)
|
| 1965: | 23900899 (diesel)
|
| Final: | 23902094 (diesel)
|
how to read serial numbers...
| |
