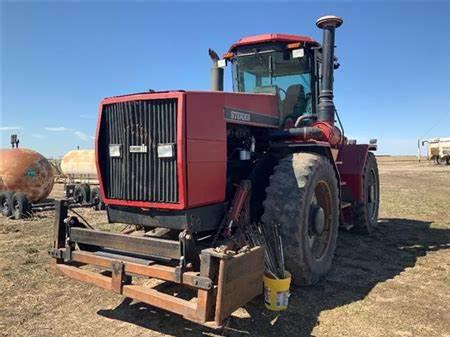

Steiger 9180 Tractors

Steiger 9180
Power: 375 hp
Date of manufacture :
1986 - 1990
Production
Manufacturer:Steiger
Type:Four-wheel Drive (4WD) tractor
Factory:Fargo, North Dakota, USA
Original price:$128,000 (1990)
Steiger 9180 Power
Engine:375 hp
279.6 kW
PTO (claimed):340 hp
253.5 kW
Steiger 9180 Engine
Mechanical
Chassis:4x4 articulated 4WD
Steering:hydrostatic power
Cab:Cab standard.
Transmission:12-speed full power shift
Capacity
Fuel:250 gal
946.3 L
Hydraulic system:26 gal
98.4 L
Hydraulics
Type:closed center
Capacity:26 gal
98.4 L
Pressure:2500 psi
172.4 bar
Valves:3 to 4
Total flow:40 gpm
151.4 lpm
Tractor hitch
Optional Rear Type:IV
Rear lift:14,000 lbs
6350 kg
Power Take-off (PTO)
Optional Rear PTO:independent
Rear RPM:1000
Dimensions & Tires
Wheelbase:141.3 inches
358 cm
Weight:28,000 lbs
12700 kg
Front tire:24.5-32
Rear tire:24.5-32
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
